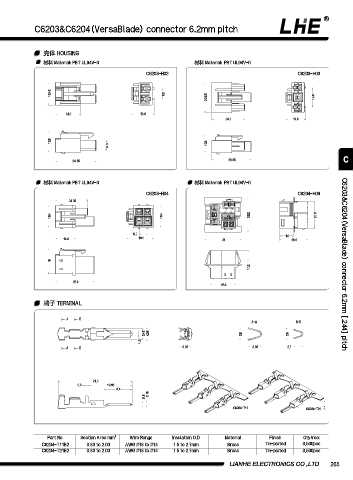

C6203&C6204(VersaBlade) connector 6.2mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0 材料 Material: PBT UL94V-0

C6203-H02 C6203-H03

13.45 6.2 22.65 14.6

14.9 13.6
24.2 14.8

12.6 13.8
6.3

24.15 29.05 C

材料 Material: PBT UL94V-0 材料 Material: PBT UL94V-0
C6203-H04 C6204-H09
24.05

16.4 16.4 36.2 27.6

6.2 14
14.8 19.9 38 28.9

19
11.5 C6203&C6204(VersaBlade) connector 6.2mm [.244] pitch

28.8
26.5

端⼦ TERMINAL

A B
A-A B-B
3.45 4.05 3.6 2.6
1.9
3.35 3.95 2.8
A B

21.9
0.9 12.95
8.4
2.05
0.6
C6204-T11
C6204-T21

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6204-T11B2 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Brass Tin-plated 3,500pcs
C6204-T21B2 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Brass Tin-plated 3,500pcs

LIANHE ELECTRONICS CO.,LTD. 265
