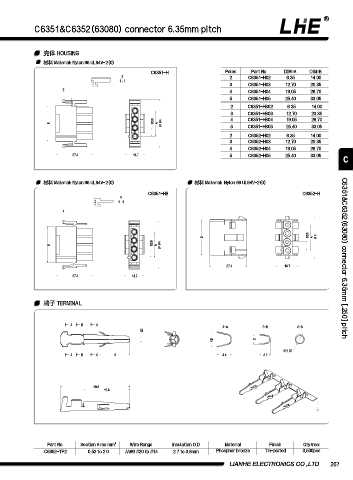

C6351&C6352(63080) connector 6.35mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
C6351-H Poles Part No. DIM=A DIM=B
Z 2 C6351-H02 6.35 14.00
1 : 1
3 C6351-H03 12.70 20.35
Z 4 C6351-H04 19.05 26.70
5 C6351-H05 25.40 33.05
2 C6351-HB02 6.35 14.00
3 C6351-HB03 12.70 20.35
6.35 4 C6351-HB04 19.05 26.70
B A B+9.4 5 C6351-HB05 25.40 33.05
2 C6352-H02 6.35 14.00
3 C6352-H03 12.70 20.35
4 C6352-H04 19.05 26.70
27.4 14.7 5 C6352-H05 25.40 33.05
C

材料 Material: Nylon 66 UL94V-2(0) 材料 Material: Nylon 66 UL94V-2(0)
C6351-HB C6352-H
Y
1 : 1
Y

6.35
B A B+5
6.35
B A B+9.4

27.4 16.7 C6351&C6352(63080) connector 6.35mm [.250] pitch
27.4 14.7

端⼦ TERMINAL

A B C
A-A B-B C-C
2
Ø
4.5 3
2.75
A B C 9 4.4 3.3

20.5
13.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C6352-TP2 0.52 to 2.0 AWG #20 to #14 2.7 to 3.8mm Phosphor bronze Tin-plated 3,500pcs

LIANHE ELECTRONICS CO.,LTD. 267
