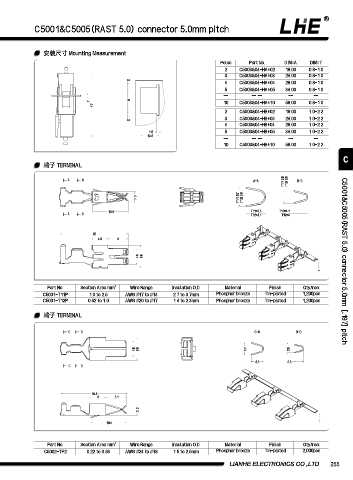

C5001&C5005(RAST 5.0) connector 5.0mm pitch

安装尺⼨ Mounting Measurement
Poles Part No. DIM=A DIM=T
2 C5003&04-HA*02 19.00 0.8~1.0
3 C5003&04-HA*03 24.00 0.8~1.0
2
4 C5003&04-HA*04 29.00 0.8~1.0
5 C5003&04-HA*05 34.00 0.8~1.0
-- -- -- -- --
A
T 10 C5003&04-HA*10 59.00 0.8~1.0
47
2 C5003&04-HB*02 19.00 1.0~2.2
3 C5003&04-HB*03 24.00 1.0~2.2
2
4 C5003&04-HB*04 29.00 1.0~2.2
1.5 5 C5003&04-HB*05 34.00 1.0~2.2
13.5
-- -- -- -- --
10 C5003&04-HB*10 59.00 1.0~2.2
C
端⼦ TERMINAL

3.8
A B A-A T12=2.8 B-B
T11=
5.7
3.3 T11= T12=3.9

10.5 T11= 5.8 T11= 4.1
A B T12=4.1 T12=3

20
4.9 6

4.8 6.8 C5001&C5005(RAST 5.0) connector 5.0mm [.197] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C5001-T11P 1.0 to 2.5 AWG #17 to #14 2.7 to 3.7mm Phosphor bronze Tin-plated 1,200pcs
C5001-T12P 0.52 to 1.0 AWG #20 to #17 1.4 to 2.3mm Phosphor bronze Tin-plated 1,200pcs

端⼦ TERMINAL

C D C-C D-D

4.8 6.8 3.7 2.5

3.6 2.8
C D

19.4
5 6.1

3.3
10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C5002-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Phosphor bronze Tin-plated 2,000pcs

LIANHE ELECTRONICS CO.,LTD. 255
