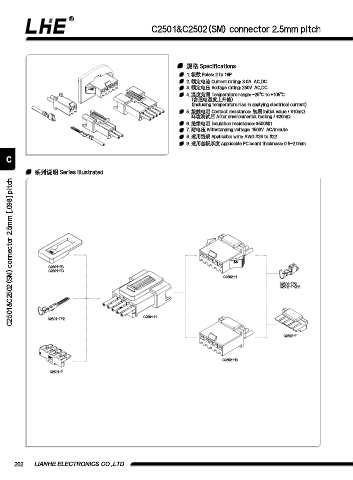

Page 220 - 浙江联和电子有限公司目录 2025-04-03

®
C2501&C2502(SM) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #28 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 0.5~2.0mm

C

系列说明 Series illustrated
C2501&C2502(SM) connector 2.5mm [.098] pitch

C2501-FB
C2501-FC
C2502-H
C2502-TP2
C2502-T12P2

C2501-H
C2501-TP2

C2502-F

C2502-HB

C2501-F
