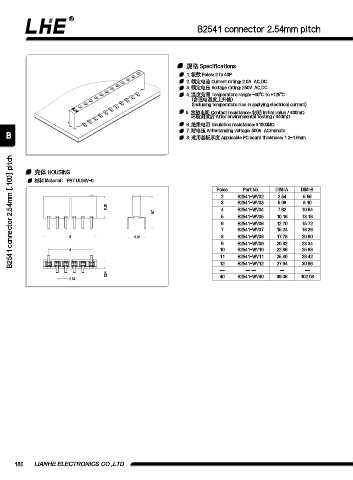

B2541 connector 2.54mm pitch

规格 Specifications
1. 极数 Poles: 2 to 40P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -40℃ to +125℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
B 8. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

B2541 connector 2.54mm [.100] pitch

壳体 HOUSING
材料 Material： PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 B2541-WV02 2.54 5.56
3 B2541-WV03 5.08 8.10
6.55 4 B2541-WV04 7.62 10.64
9.7
5 B2541-WV05 10.16 13.18
6 B2541-WV06 12.70 15.72
7 B2541-WV07 15.24 18.26
B 5.08 8 B2541-WV08 17.78 20.80
9 B2541-WV09 20.32 23.34
A 10 B2541-WV10 22.86 25.88
11 B2541-WV11 25.40 28.42
12 B2541-WV12 27.94 30.96
-- -- -- -- --
2.54
2.54 40 B2541-WV40 99.06 102.08
