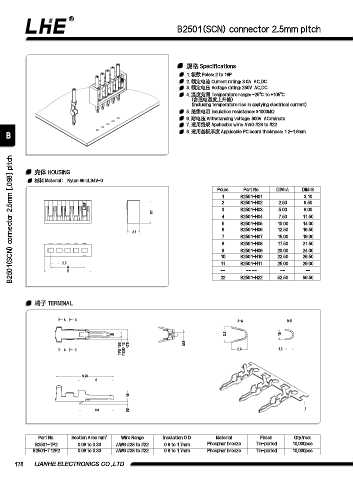

B2501(SCN) connector 2.5mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥1000MΩ
6. 耐电压 Withstanding voltage: 800V AC/minute
7. 适⽤线规 Applicable wire: AWG #28 to #22
B 8. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

B2501(SCN) connector 2.5mm [.098] pitch

壳体 HOUSING
材料 Material： Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
1 B2501-H01 3.10
2 B2501-H02 2.50 6.50
3 B2501-H03 5.00 9.00
6.7
4 B2501-H04 7.50 11.50
5 B2501-H05 10.00 14.00
6 B2501-H06 12.50 16.50
3.8
7 B2501-H07 15.00 19.00
8 B2501-H08 17.50 21.50
9 B2501-H09 20.00 24.00
10 B2501-H10 22.50 26.50
2.5 11 B2501-H11 25.00 29.00
A
B -- -- -- -- --
22 B2501-H22 52.50 56.50

端⼦ TERMINAL

A B A-A B-B

2.6 1.8
1.05 1.75 0.65
A B T12P2=1.2 2.6 1.5
TP2=

9.75
6

1.8

5.8 0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B2501-TP2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 10,000pcs
B2501-T12P2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.7mm Phosphor bronze Tin-plated 10,000pcs

178 LIANHE ELECTRONICS CO.,LTD.
