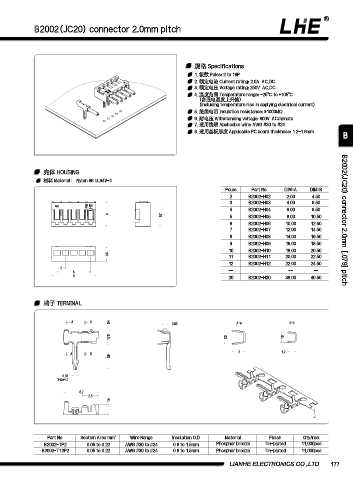

B2002(JC20) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥1000MΩ
6. 耐电压 Withstanding voltage: 800V AC/minute
7. 适⽤线规 Applicable wire: AWG #30 to #24
8. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm
B

壳体 HOUSING
材料 Material： Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B2002-H02 2.00 4.50
3 B2002-H03 4.00 6.50
4 B2002-H04 6.00 8.50
5.7 5 B2002-H05 8.00 10.50
6
6 B2002-H06 10.00 12.50 B2002(JC20) connector 2.0mm [.079] pitch
7 B2002-H07 12.00 14.50
8 B2002-H08 14.00 16.50
9 B2002-H09 16.00 18.50
10 B2002-H10 18.00 20.50
3.5
11 B2002-H11 20.00 22.50
12 B2002-H12 22.00 24.50
2
A -- -- --
B 20 B2002-H20 38.00 40.50

端⼦ TERMINAL

A B 0.4 0.55 A-A B-B

1.75 2.2 1.6

2 1.2
A B
3.9

0.95
T12=1.2
5.2
2.5
1.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B2002-TP2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 11,000pcs
B2002-T12P2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 11,000pcs

LIANHE ELECTRONICS CO.,LTD. 177
