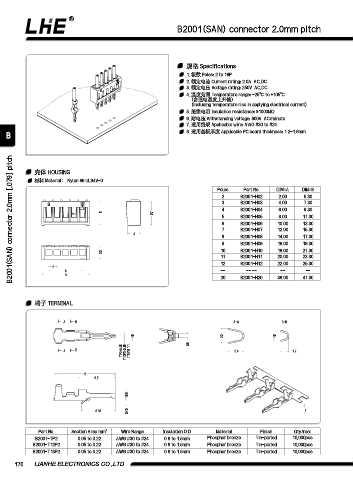

B2001(SAN) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 2.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥1000MΩ
6. 耐电压 Withstanding voltage: 800V AC/minute
7. 适⽤线规 Applicable wire: AWG #30 to #24
B 8. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm

B2001(SAN) connector 2.0mm [.079] pitch

壳体 HOUSING
材料 Material： Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B2001-H02 2.00 5.30
3 B2001-H03 4.00 7.30
4 B2001-H04 6.00 9.30
5.7
6
5 B2001-H05 8.00 11.30
6 B2001-H06 10.00 13.30
7 B2001-H07 12.00 15.30
3
8 B2001-H08 14.00 17.30
9 B2001-H09 16.00 19.30
10 B2001-H10 18.00 21.30
3.3
11 B2001-H11 20.00 23.30
12 B2001-H12 22.00 25.30
2
A -- -- -- -- --
B
20 B2001-H20 38.00 41.30

端⼦ TERMINAL

A B A-A B-B

1.5 2.2 1.6
0.6
0.95
A B T13P2=1.1 2.4 1.2
TP2= T12P2=0.85

9
5.5

1.65

5.05
0.45

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B2001-TP2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
B2001-T12P2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs
B2001-T13P2 0.05 to 0.22 AWG #30 to #24 0.8 to 1.5mm Phosphor bronze Tin-plated 10,000pcs

176 LIANHE ELECTRONICS CO.,LTD.
