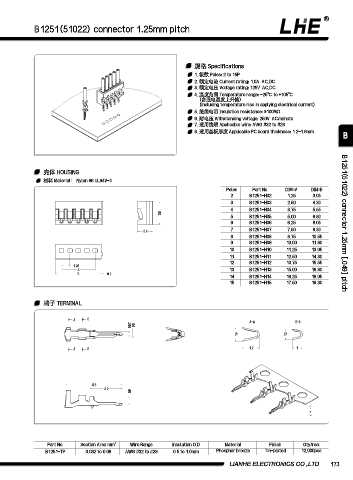

B1251(51022) connector 1.25mm pitch

规格 Specifications
1. 极数 Poles: 2 to 15P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 125V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 绝缘电阻 Insulation resistance: ≥100MΩ
6. 耐电压 Withstanding voltage: 250V AC/minute
7. 适⽤线规 Applicable wire: AWG #32 to #28
8. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm
B

壳体 HOUSING
材料 Material： Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 B1251-H02 1.25 3.05
3 B1251-H03 2.50 4.30
4 B1251-H04 3.75 5.55
3.5
5 B1251-H05 5.00 6.80
6 B1251-H06 6.25 8.05 B1251(51022) connector 1.25mm [.049] pitch
7 B1251-H07 7.50 9.30
2.2
8 B1251-H08 8.75 10.55
9 B1251-H09 10.00 11.80
10 B1251-H10 11.25 13.05
11 B1251-H11 12.50 14.30
12 B1251-H12 13.75 15.55
1.25
A 13 B1251-H13 15.00 16.80
B 0.2
14 B1251-H14 16.25 18.05
15 B1251-H15 17.50 19.30

端⼦ TERMINAL

A B A-A B-B
0.57 0.8
1.4 1.1

1.7 1
A B

5.6
3.2
0.9

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
B1251-TP 0.032 to 0.08 AWG #32 to #28 0.5 to 1.0mm Phosphor bronze Tin-plated 12,000pcs

LIANHE ELECTRONICS CO.,LTD. 173
