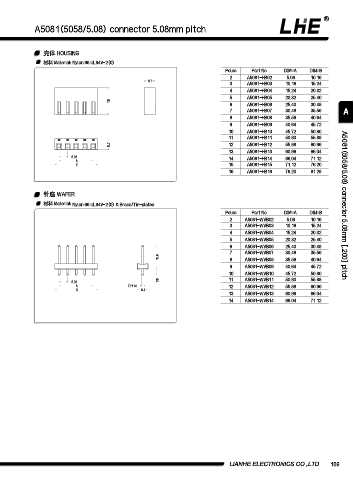

A5081(5058/5.08) connector 5.08mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 A5081-HB02 5.08 10.16
6.5
3 A5081-HB03 10.16 15.24
4 A5081-HB04 15.24 20.32
5 A5081-HB05 20.32 25.40
16
6 A5081-HB06 25.40 30.48
7 A5081-HB07 30.48 35.56 A
8 A5081-HB08 35.56 40.64
9 A5081-HB09 40.64 45.72
10 A5081-HB10 45.72 50.80
11 A5081-HB11 50.80 55.88
6.7 12 A5081-HB12 55.88 60.96
13 A5081-HB13 60.96 66.04
5.08 14 A5081-HB14 66.04 71.12
A
B 15 A5081-HB15 71.12 76.20
16 A5081-HB16 76.20 81.28

针座 WAFER
材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated A5081(5058/5.08) connector 5.08mm [.200] pitch
Poles Part No. DIM=A DIM=B
2 A5081-WVB02 5.08 10.16
3 A5081-WVB03 10.16 15.24
4 A5081-WVB04 15.24 20.32
5 A5081-WVB05 20.32 25.40
6 A5081-WVB06 25.40 30.48
7 A5081-WVB07 30.48 35.56
13.9 8 A5081-WVB08 35.56 40.64
9 A5081-WVB09 40.64 45.72
10 A5081-WVB10 45.72 50.80
5.08 3.6 11 A5081-WVB11 50.80 55.88
A  1.14 12 A5081-WVB12 55.88 60.96
B 6.4
13 A5081-WVB13 60.96 66.04
14 A5081-WVB14 66.04 71.12

LIANHE ELECTRONICS CO.,LTD. 169
