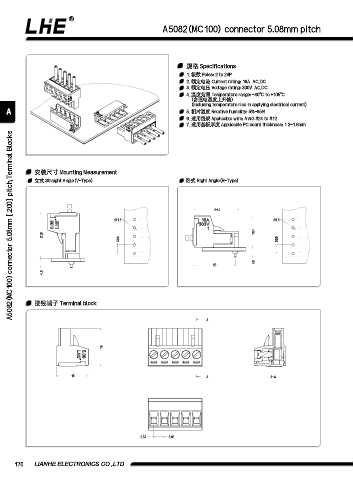

A5082(MC100) connector 5.08mm pitch

规格 Specifications
1. 极数 Poles: 2 to 24P
2. 额定电流 Current rating: 16A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -40℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 相对湿度 Relative humidity: 5%~95%
6. 适⽤线规 Applicable wire: AWG #24 to #12
7. 适⽤基板厚度 Applicable PC board thickness: 1.2~1.6mm
A5082(MC100) connector 5.08mm [.200] pitch,Terminal Blocks

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

21.3
1.5 1.5
15.1
21.8
5.08 5.08

4.5
20
4.5

接线端⼦ Terminal block

A

18

15 A A-A

2.54 5.08
