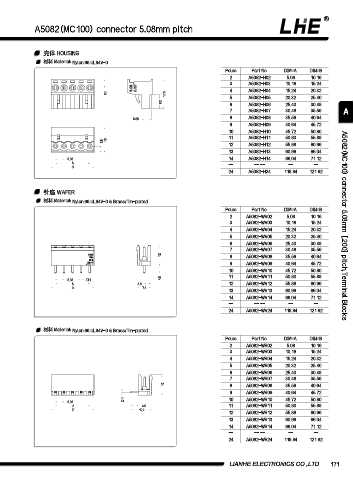

A5082(MC100) connector 5.08mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A5082-H02 5.08 10.16
3 A5082-H03 10.16 15.24
4 A5082-H04 15.24 20.32
5.1 17.5
5 A5082-H05 20.32 25.40
8.2 6 A5082-H06 25.40 30.48
7 A5082-H07 30.48 35.56 A
8 A5082-H08 35.56 40.64
5.55
9 A5082-H09 40.64 45.72
10 A5082-H10 45.72 50.80
11 A5082-H11 50.80 55.88
3.8 15
12 A5082-H12 55.88 60.96
13 A5082-H13 60.96 66.04
5.08 14 A5082-H14 66.04 71.12
A -- -- -- -- --
B
24 A5082-H24 116.84 121.92

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A5082-WV02 5.08 10.16
3 A5082-WV03 10.16 15.24 A5082(MC100) connector 5.08mm [.200] pitch,Terminal Blocks
4 A5082-WV04 15.24 20.32
5 A5082-WV05 20.32 25.40
6 A5082-WV06 25.40 30.48
7 A5082-WV07 30.48 35.56
12 8 A5082-WV08 35.56 40.64
9 A5082-WV09 40.64 45.72
10 A5082-WV10 45.72 50.80
4.5 11 A5082-WV11 50.80 55.88
5.08  1
A 3.8 12 A5082-WV12 55.88 60.96
B 7.8
13 A5082-WV13 60.96 66.04
14 A5082-WV14 66.04 71.12
-- -- -- -- --
24 A5082-WV24 116.84 121.92

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A5082-WR02 5.08 10.16
3 A5082-WR03 10.16 15.24
4 A5082-WR04 15.24 20.32
5 A5082-WR05 20.32 25.40
6 A5082-WR06 25.40 30.48
7 A5082-WR07 30.48 35.56
12 8 A5082-WR08 35.56 40.64
9 A5082-WR09 40.64 45.72
1 10 A5082-WR10 45.72 50.80
5.08 
A 4.5 11 A5082-WR11 50.80 55.88
B 12.3
12 A5082-WR12 55.88 60.96
13 A5082-WR13 60.96 66.04
14 A5082-WR14 66.04 71.12
-- -- -- -- --
24 A5082-WR24 116.84 121.92

LIANHE ELECTRONICS CO.,LTD. 171
