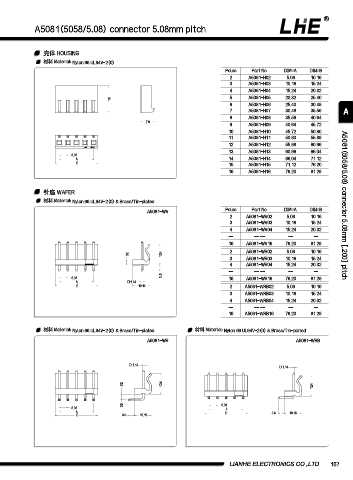

A5081(5058/5.08) connector 5.08mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 A5081-H02 5.08 10.16
3 A5081-H03 10.16 15.24
4 A5081-H04 15.24 20.32
5 A5081-H05 20.32 25.40
16
6 A5081-H06 25.40 30.48
7 A5081-H07 30.48 35.56 A
8 A5081-H08 35.56 40.64
7.9
9 A5081-H09 40.64 45.72
10 A5081-H10 45.72 50.80
11 A5081-H11 50.80 55.88
12 A5081-H12 55.88 60.96
13 A5081-H13 60.96 66.04
5.08
A 14 A5081-H14 66.04 71.12
B
15 A5081-H15 71.12 76.20
16 A5081-H16 76.20 81.28

针座 WAFER
材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated A5081(5058/5.08) connector 5.08mm [.200] pitch
A5081-WV Poles Part No. DIM=A DIM=B
2 A5081-WV02 5.08 10.16
3 A5081-WV03 10.16 15.24
4 A5081-WV04 15.24 20.32
-- -- -- -- --
16 A5081-WV16 76.20 81.28
2 A5081-WR02 5.08 10.16
3.2 12.4
3 A5081-WR03 10.16 15.24
4 A5081-WR04 15.24 20.32
-- -- -- -- --
3.6
5.08 16 A5081-WR16 76.20 81.28
A  1.14
B 10.16 2 A5081-WRB02 5.08 10.16
3 A5081-WRB03 10.16 15.24
4 A5081-WRB04 15.24 20.32
-- -- -- -- --
16 A5081-WRB16 76.20 81.28

材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated
A5081-WR A5081-WRB

 1.14
 1.14

3.2 12.4 12.4

3.5 5.08
5.08 A
A B 3.6 10.16
B 3.6 10.16
