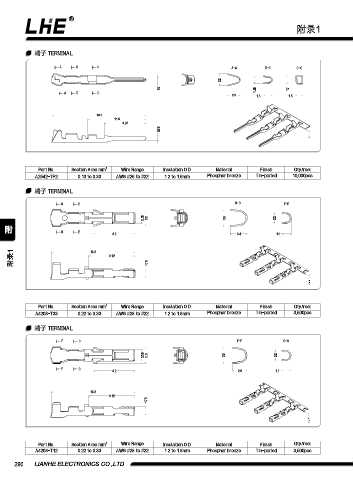

附录1

端⼦ TERMINAL

A B C A-A B-B C-C
2.3
0.7 1.55 1.7
A B C
2.6 1.8 1.5

18.5
11.5
8.25
0.66

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2542-TP2 0.13 to 0.33 AWG #26 to #22 1.2 to 1.6mm Phosphor bronze Tin-plated 10,000pcs

端⼦ TERMINAL

D E D-D E-E
2.25 3.3 3.5 2.2

附 D E 8.2 3.4 1.8

附录1 16.5 9.12 1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A4203-T33 0.22 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 3,500pcs
端⼦ TERMINAL

F G F-F G-G
2.25 3.3 3.3 2.2

F G
8.2 2.9 1.8

16.5
9.12
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A4203-T12 0.22 to 0.33 AWG #28 to #22 1.2 to 1.8mm Phosphor bronze Tin-plated 3,500pcs

290 LIANHE ELECTRONICS CO.,LTD.
