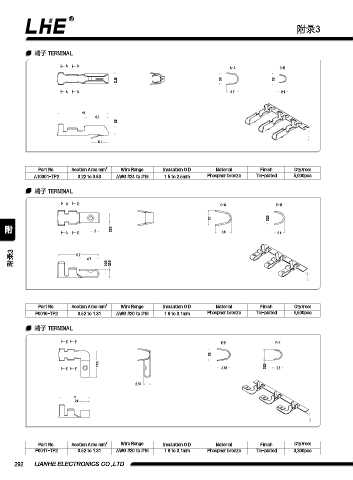

附录3

端⼦ TERMINAL

A B
A-A B-B
2.85 3.6 2.5

A B 3.5 2.1

15
6.8
2.8

5.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A10001-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Phosphor bronze Tin-plated 5,000pcs

端⼦ TERMINAL
C D C-C D-D

3.7 3.25

附 C D 2 2.35 3.8 2.4

附录3 9.7 4.7 0.38 2.05

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
P0016-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 4,500pcs
端⼦ TERMINAL

E F
E-E F-F
3.8
7.85
E F 3.85 3.25 2.5

2.15

9
2.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
P0017-TP2 0.52 to 1.31 AWG #20 to #16 1.9 to 3.1mm Phosphor bronze Tin-plated 3,300pcs

292 LIANHE ELECTRONICS CO.,LTD.
