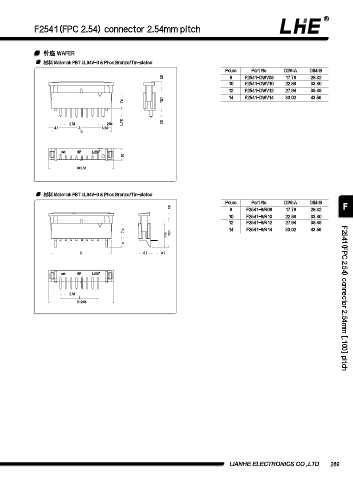

F2541(FPC 2.54) connector 2.54mm pitch

针座 WAFER
材料 Material: PBT UL94V-0 & Phos.Bronze/Tin-plated
Poles Part No. DIM=A DIM=B
3.5 8 F2541-DWV08 17.78 28.32
10 F2541-DWV10 22.86 33.40
12 F2541-DWV12 27.94 38.48
7.4 10.1 14 F2541-DWV14 33.02 43.56

2.54 2.54 3.75 3.2
4.3 A 6.24
B

5.7

B+2.68

材料 Material: PBT UL94V-0 & Phos.Bronze/Tin-plated
Poles Part No. DIM=A DIM=B
3.5 8 F2541-WR08 17.78 28.32 F
10 F2541-WR10 22.86 33.40
12 F2541-WR12 27.94 38.48
7.4 13.1 14 F2541-WR14 33.02 43.56
11.4
4
B 5.7 3.2

2.54
A F2541(FPC 2.54) connector 2.54mm [.100] pitch
B+2.68

LIANHE ELECTRONICS CO.,LTD. 289
