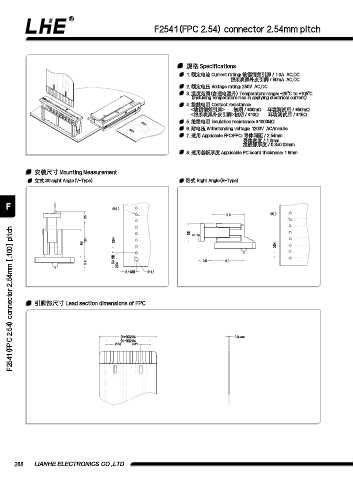

F2541(FPC 2.54) connector 2.54mm pitch

规格 Specifications
1. 额定电流 Current rating: 镀锡铜箔引脚 / 1.0A AC,DC
银浆炭⿊外⽪引脚 / 50mA AC,DC
2. 额定电压 Voltage rating: 250V AC,DC
3. 温度范围(含通电温升) Temperature range: -25℃ to +105℃
(Including temperature rise in applying electrical current)
4. 接触电阻 Contact resistance:
<镀锡铜箔引脚> 初期 / ≤30mΩ 环境测试后 / ≤50mΩ
<银浆炭⿊外⽪引脚>初期 / ≤10Ω 环境测试后 / ≤15Ω
5. 绝缘电阻 Insulation resistance: ≥1000MΩ
6. 耐电压 Withstanding voltage: 1200V AC/minute
7. 适⽤ Applicable FFC\FPC: 导体间距 / 2.54mm
导体宽度 / 1.0mm
接触部厚度 / 0.3±0.03mm
8. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

F 0.9

9.6 0.9
3.5
F2541(FPC 2.54) connector 2.54mm [.100] pitch
5.8
10.1 2.54
8.4 2.54

5.3 MIN 3.5 9.9
3.2
2.54
5.1 MIN 1.5

引脚部尺⼨ Lead section dimensions of FPC

(N+1)X2.54 0.3 0.03
(N-1)X2.54
2.54 3.81
