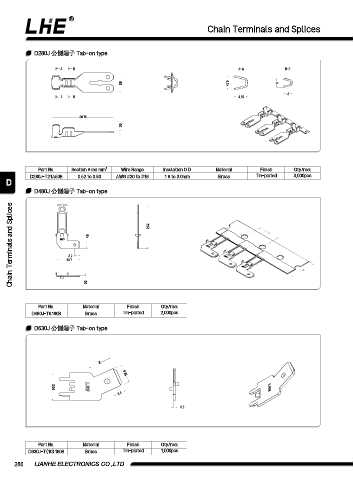

Chain Terminals and Splices

D280J 公侧端⼦ Tab-on type

A B A-A B-B

6.6 4.75 3
3
A B 4.55

20.75
0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D280J-T21A50B 0.52 to 0.83 AWG #20 to #18 1.9 to 3.0mm Brass Tin-plated 3,000pcs
D
D480J 公侧端⼦ Tab-on type
Chain Terminals and Splices 13.7 4.8 26.2

3.2

0.5

Part No. Material Finish Qty/reel
D480J-T6180B Brass Tin-plated 2,000pcs
D630J 公侧端⼦ Tab-on type

8 6.35

9.32
4.4

0.8

Part No. Material Finish Qty/reel
D630J-T(10)180B Brass Tin-plated 1,000pcs

286 LIANHE ELECTRONICS CO.,LTD.
