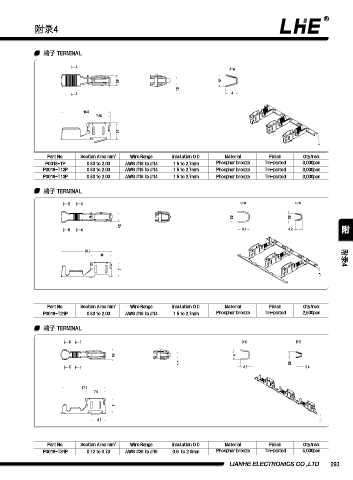

附录4

端⼦ TERMINAL

A
A-A
3.6 4.1
1.2
A 4

16.5
7.85

5.7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
P0018-TP 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Phosphor bronze Tin-plated 3,000pcs
P0018-T12P 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Phosphor bronze Tin-plated 3,000pcs
P0018-T13P 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Phosphor bronze Tin-plated 3,000pcs

端⼦ TERMINAL
B C B-B C-C

5.5 3.6
4.2
B C 5.5 3.2 附

23.7
10 附录4

7

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
P0018-T21P 0.83 to 2.00 AWG #18 to #14 1.5 to 2.7mm Phosphor bronze Tin-plated 2,500pcs
端⼦ TERMINAL

D E D-D E-E
3.4 4
1.1 2.5
D E 3.5 2.4

17.2
7.9

6

5.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
P0018-T31P 0.12 to 0.73 AWG #26 to #16 0.9 to 2.0mm Phosphor bronze Tin-plated 5,000pcs

LIANHE ELECTRONICS CO.,LTD. 293
