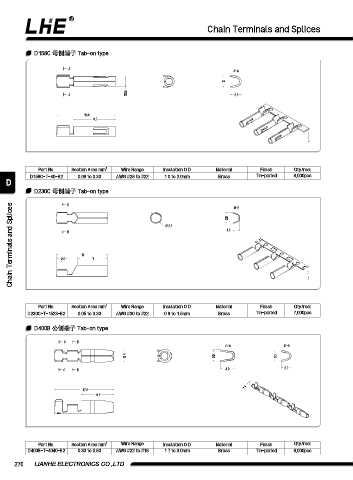

Chain Terminals and Splices

D158C ⺟侧端⼦ Tab-on type

A
A-A
3
2.4
A 2.6

13.9
9.9

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D158C-T-40-B2 0.08 to 0.33 AWG #28 to #22 1.0 to 2.0mm Brass Tin-plated 8,000pcs
D
D230C ⺟侧端⼦ Tab-on type B-B
Chain Terminals and Splices 2.5 B 12 7 2.6 1.6
B
2.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D230C-T-1523-B2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Brass Tin-plated 7,000pcs
D400B 公侧端⼦ Tab-on type

C D
C-C D-D
4 3.5 3.1

C D 4.2 2.9

17.5
9.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D400B-T-4040-B2 0.33 to 0.83 AWG #22 to #18 1.7 to 3.0mm Brass Tin-plated 8,000pcs

276 LIANHE ELECTRONICS CO.,LTD.
