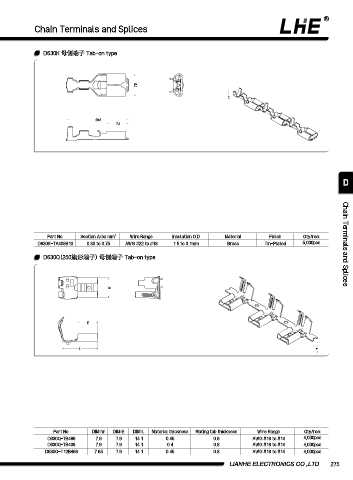

Page 293 - 浙江联和电子有限公司目录 2025-04-03

®
Chain Terminals and Splices

D630K ⺟侧端⼦ Tab-on type

7.6

20.8
7.3

D

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
D630K-TA408B10 0.30 to 0.75 AWG #22 to #18 1.5 to 3.1mm Brass Tin-Plated 5,000pcs Chain Terminals and Splices

D630Q(250旗形端⼦) ⺟侧端⼦ Tab-on type

W

E

L

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D630Q-TB468 7.9 7.9 14.1 0.45 0.8 AWG #18 to #14 4,000pcs
D630Q-TB408 7.9 7.9 14.1 0.4 0.8 AWG #18 to #14 4,000pcs
D630Q-T12B468 7.65 7.9 14.1 0.45 0.8 AWG #18 to #14 4,000pcs

LIANHE ELECTRONICS CO.,LTD. 275
