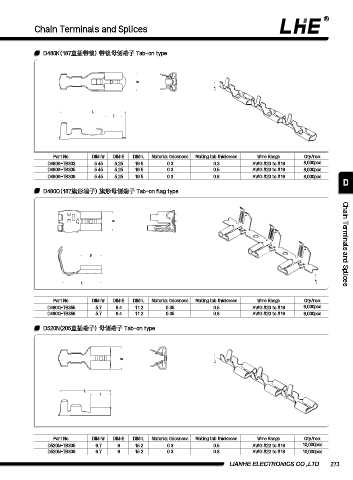

Chain Terminals and Splices

D480K(187直插带锁) 带锁⺟侧端⼦ Tab-on type

W

L
E

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D480K-TB303 5.45 5.25 19.5 0.3 0.3 AWG #20 to #16 8,000pcs
D480K-TB305 5.45 5.25 19.5 0.3 0.5 AWG #20 to #16 8,000pcs
D480K-TB308 5.45 5.25 19.5 0.3 0.8 AWG #20 to #16 8,000pcs
D
D480Q(187旗形端⼦) 旗形⺟侧端⼦ Tab-on flag type

W

E Chain Terminals and Splices

L

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D480Q-TB355 5.7 6.4 11.2 0.35 0.5 AWG #20 to #16 6,000pcs
D480Q-TB358 5.7 6.4 11.2 0.35 0.8 AWG #20 to #16 6,000pcs
D520N(205直插端⼦) ⺟侧端⼦ Tab-on type

W

L
E

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D520N-TB305 6.7 6 15.2 0.3 0.5 AWG #22 to #18 10,000pcs
D520N-TB308 6.7 6 15.2 0.3 0.8 AWG #22 to #18 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 273
