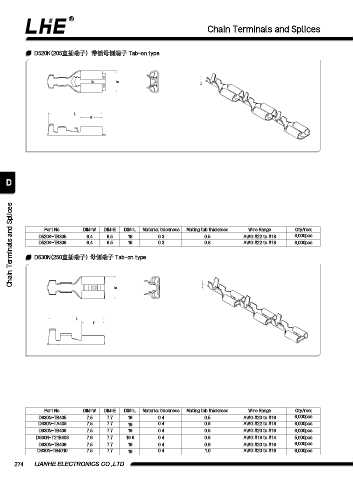

Chain Terminals and Splices

D520K(205直插端⼦) 带锁⺟侧端⼦ Tab-on type

W

L
E

D

Chain Terminals and Splices D630N(250直插端⼦) ⺟侧端⼦ Tab-on type 0.3 Mating tab thickness AWG #22 to #18 8,000pcs

Material thickness
DIM=E
DIM=L
DIM=W
Part No.
Wire Range
Qty/reel
6.4
16
6.5
0.5
D520K-TB305
8,000pcs
0.3
16
AWG #22 to #18
0.8
D520K-TB308
6.4
6.5
W
L
E

Part No. DIM=W DIM=E DIM=L Material thickness Mating tab thickness Wire Range Qty/reel
D630N-TB405 7.5 7.7 19 0.4 0.5 AWG #20 to #16 6,000pcs
D630N-TA408 7.5 7.7 19 0.4 0.8 AWG #22 to #18 8,000pcs
D630N-TB408 7.5 7.7 19 0.4 0.8 AWG #20 to #16 8,000pcs
D630N-T21B408 7.6 7.7 19.6 0.4 0.8 AWG #18 to #14 5,000pcs
D630N-TB409 7.5 7.7 19 0.4 0.9 AWG #20 to #16 6,000pcs
D630N-TB4010 7.5 7.7 19 0.4 1.0 AWG #20 to #16 6,000pcs

274 LIANHE ELECTRONICS CO.,LTD.
