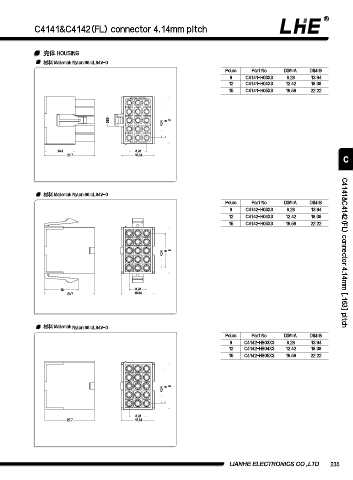

C4141&C4142(FL) connector 4.14mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 C4141-H03X3 8.28 13.94
12 C4141-H04X3 12.42 18.08
15 C4141-H05X3 16.56 22.22

5.68 4.14 A B

14.4 8.28
23.7 15.84
C

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 C4142-H03X3 8.28 13.94
12 C4142-H04X3 12.42 18.08
15 C4142-H05X3 16.56 22.22

4.14 A B C4141&C4142(FL) connector 4.14mm [.163] pitch

16 8.28
23.7 15.84

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
9 C4142-HB03X3 8.28 13.94
12 C4142-HB04X3 12.42 18.08
15 C4142-HB05X3 16.56 22.22

4.14 A B

8.28
23.7 15.84
