Common Problems With Automotive Connector Selection

Automotive connectors are critical components in modern vehicles, ensuring reliable electrical connections for applications ranging from engine control units to infotainment systems. However, choosing the right automotive connector is not always simple. Various factors, such as environmental conditions, mechanical stress, and compatibility issues, can lead to problems that affect vehicle performance and reliability.

In this article, we will explore some of the most common problems encountered when selecting automotive connectors and how to effectively solve them.

How to Choose Automotive Connectors?

When selecting an automotive connector, several primary considerations must be taken into account to ensure a secure and reliable connection:

  • Electrical Requirements: Ensure the connector meets the necessary voltage, current, and signal transmission needs.
  • Environmental Conditions: Consider exposure to moisture, dust, extreme temperatures, and chemicals.
  • Mechanical Durability: The connector should withstand vibrations, shocks, and mechanical stress.
  • Size and Form Factor: Choose connectors that fit within the available space without causing interference.
  • Regulatory Compliance: Follow industry standards such as ISO, SAE, and OEM specifications.

Common Problems With Automotive Connector Selection

Mismatched Connector Types

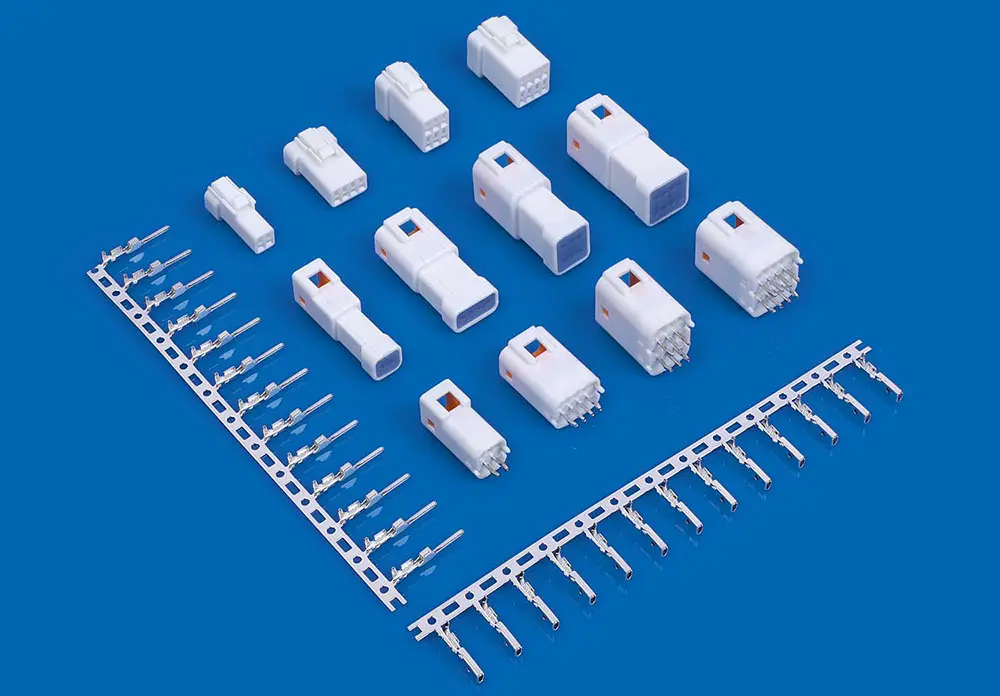

Mismatched Connector Types

One of the most prevalent issues in automotive connector selection is choosing the wrong type of connector for a given application. Connectors come in various designs, including blade, pin, and coaxial types, each suited for different functions.

Solution:

Identify the electrical and mechanical requirements of your application.
Refer to manufacturer specifications and datasheets.
Work with suppliers or engineers to ensure compatibility.

Poor Environmental Resistance

Automotive connectors are exposed to harsh conditions, including extreme temperatures, moisture, vibration, and chemicals. If the selected connector is not designed for these conditions, it may fail prematurely.

Solution:

Choose connectors with appropriate Ingress Protection (IP) ratings to withstand dust and moisture.
Ensure the connector materials are resistant to chemicals, fuels, and UV exposure.
Look for connectors with proper sealing and gaskets to prevent water ingress.

Insufficient Current and Voltage Ratings

Using connectors that cannot handle the required current and voltage levels can lead to overheating, short circuits, and even fire hazards.

Solution:

Calculate the electrical load requirements before selecting a connector.
Choose connectors with a safety margin above the required current and voltage ratings.
Refer to industry standards (e.g., ISO, SAE) for guidance on safe connector ratings.

Improper Connector Size and Fit

Selecting connectors that are too large or too small for the available space can lead to installation difficulties, poor mechanical support, and connection failures.

Solution:

Measure the available space and choose compact connectors if necessary.
Consider miniaturized or right-angle connectors for tight spaces.
Ensure the connectors fit securely with the mating parts.

Lack of Proper Locking Mechanisms

Loose or improperly secured connectors can lead to intermittent electrical connections, resulting in malfunctions or system failures.

Solution:

Select connectors with locking clips, latches, or threaded couplings for secure connections.
Test the locking mechanism under vibration and shock conditions.
Ensure proper installation and engage locks fully during assembly.

Inadequate Contact Material and Plating

Connector contacts play a crucial role in electrical conductivity and longevity. Poor-quality contact materials can lead to corrosion, resistance build-up, and poor signal transmission.

Solution:

Choose connectors with gold or silver plating for low resistance and corrosion resistance.
Avoid tin-plated connectors in high-humidity environments unless specified for use.
Regularly inspect and clean connector contacts to prevent oxidation.

Automotive Connector Selection Principles

Compatibility Issues With Wire Types and Gauges

Using connectors that are incompatible with the wiring system can lead to improper crimps, poor conductivity, and mechanical failures.

Solution:

Match the connector’s terminal size with the wire gauge.
Use crimping tools specified by the manufacturer.
Consider pre-terminated connectors if crimping precision is a concern.

EMI/RFI Interference Problems

Automotive systems rely heavily on electronic signals. If connectors lack proper shielding, they can cause electromagnetic interference (EMI) or radio frequency interference (RFI), leading to signal degradation and malfunctions.

Solution:

Use shielded connectors and cables for sensitive applications.
Ensure proper grounding and shielding techniques are followed.
Avoid routing signal wires near power cables to reduce noise interference.

Compatibility Issues With Wire Types and Gauges

Using connectors that are incompatible with the wiring system can lead to improper crimps, poor conductivity, and mechanical failures.

Solution:

Match the connector’s terminal size with the wire gauge.
Use crimping tools specified by the manufacturer.
Consider pre-terminated connectors if crimping precision is a concern.

Cost-Driven Selection Leading to Low-Quality Components

Choosing low-cost connectors to reduce expenses can often lead to performance issues, shorter lifespans, and costly replacements in the long run.

Solution:

Invest in high-quality, industry-certified connectors.
Consider total cost of ownership (TCO) rather than just upfront costs.
Work with reputable suppliers that offer warranty and support.

Automotive Connector Selection Principles

To ensure a reliable and effective selection process, follow these principles:

  • Reliability: Choose connectors with proven performance records.
  • Durability: Ensure connectors can withstand mechanical and environmental stress.
  • Safety: Follow proper voltage and current rating guidelines.
  • Compatibility: Verify compatibility with existing vehicle systems.
  • Ease of Installation: Opt for connectors with simple and secure installation methods.

Automotive Connector Selection Considerations

  • Future Scalability: Consider connectors that can accommodate future vehicle upgrades.
  • Weight and Space Constraints: Select lightweight and compact connectors for space optimization.
  • Serviceability: Use connectors that allow for easy maintenance and replacement.
  • Material Selection: Choose high-quality materials for extended durability and performance.
  • Regulatory Compliance: Ensure compliance with automotive industry standards and safety requirements.

Conclusion

Selecting the right automotive connector is crucial for ensuring the reliability, efficiency, and longevity of vehicle electrical systems. By addressing common issues such as mismatched connector types, poor environmental resistance, inadequate current ratings, and improper locking mechanisms, engineers and technicians can significantly reduce failures and maintenance costs.

Understanding the specific needs of each application, considering environmental and mechanical challenges, and prioritizing quality over cost will help you choose the right connector. By following these best practices, you can ensure secure, long-lasting, and efficient automotive electrical connections.
