| Product category: A1001 SERIES | Picth: 1.00mm |
| Temperature: -25℃~105℃ | Material: LCP, Phosphor Bronze Tin |
| Current(Max)(A): 1 | Voltage – Maximum(VAC/DC): 50 |
| Wire rang(AWG): 32-28 | UL: E364711 |

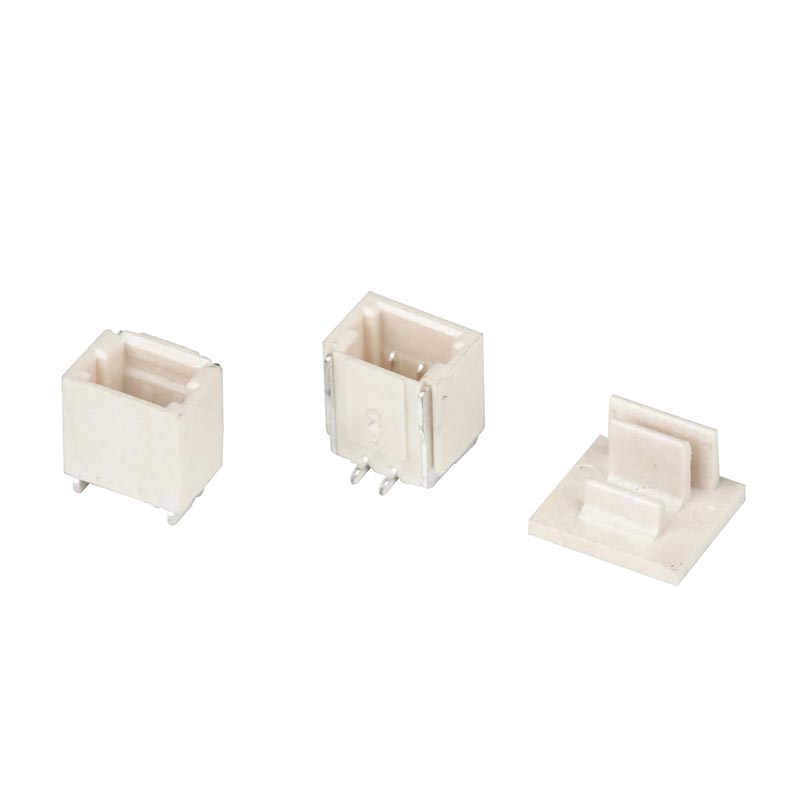

1.00mm Pitch, Vertical Header, Surface Mount, Single Row, 2 Circuits, LCP, Brass Tin, Beige, Cap Reel
A1001-SV02
| Product Type Features | Connector Product Type: Header
Centerline (Pitch): 1 mm Connector System: Wire-to-Board Product category: A1001 |
| Specifications And Characteristics | Material – Resin and Flammability: LCP UL94V-0
Material-Metal: Bronze Tin/Phosphor Bronze Tin Plating: Tin Plating Color: Beige |
| Configuration Features | Number of Positions: 2
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 50
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel/Carton
Packaging Quantity: 1500 |
