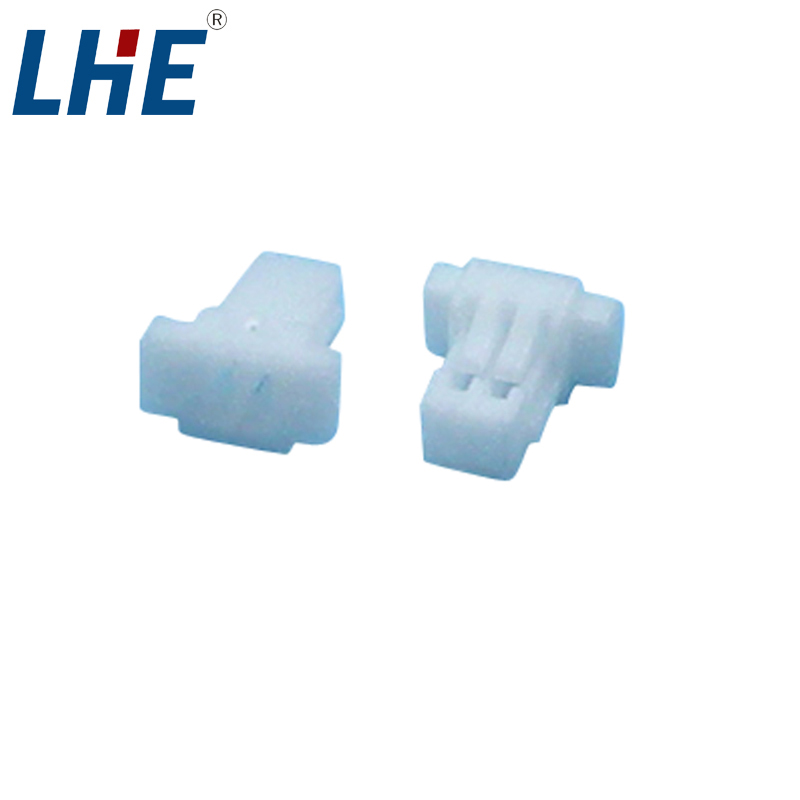

A1001(SH) Connector 1.0mm Pitch

A1001(SH) Connector 1.0mm Pitch is replacement of JST NH connectors.It’s widely used in wire to board connectors.

Type: wire to board
Application: Power
Gender: Male & Female
Product Name: A1001 1.0 Connector
Pitch: 1.0mm
Material: PA66 and Brass Tin
Poles: 2-16P
Row: Single Row & Double Row
Color: White
Delivery time: Stock goods within 1 day

Packaging & Delivery

Packaging Details

Housing in plastic bag and Terminals in double paper board,then in cartons, 50CM * 40CM * 50CM.(negotiable)

Port

Shanghai/Ningbo

Lead Time

Quantity(Pieces) 1 – 10000 >10000
Est. Time(days) 3 To be negotiated

Specification

Poles:2 to 50PIN

Current rating:1.0A AC,DC

Voltage rating:250V AC,DC

Temperature range:-25°C to +85°C

Contact resistance:≤20mΩ

Insulation resistance:≥5000mΩ

Withstand voltage:5000V AC/minute

Applicable wire: AWG #30 to #28



Advantage

1. Specializes in manufacturing connector for more than 16 years as well as export the relevant component for more than 8 years

2. UL-marked products conform to REACH and ROHS regulations

3. The rich selection of connector, terminal, terminal block, pin header, machined pin socket and more

4. ISO 9001:2008-certified factory quipped with automated assembly lines

5. Up to 40 million units turned out each month

6. Custom orders welcome

7. R&D team updates every month with 20 new items

8. Sample take up to 3 days but can be finished with one day in urgent cases

9. The LHE connector can replace JST,Molex,YEONHO,Tyco,AMP,KET,JWT,JMT, Cvilux,GTK etc.

Specification
Series A1001 Series
Contact Pitch 1.0mm
No.of Contacts 2 to 30 positions
Current 1A(AWG28至32)
Compatible Cross JST SH / Connector Series
