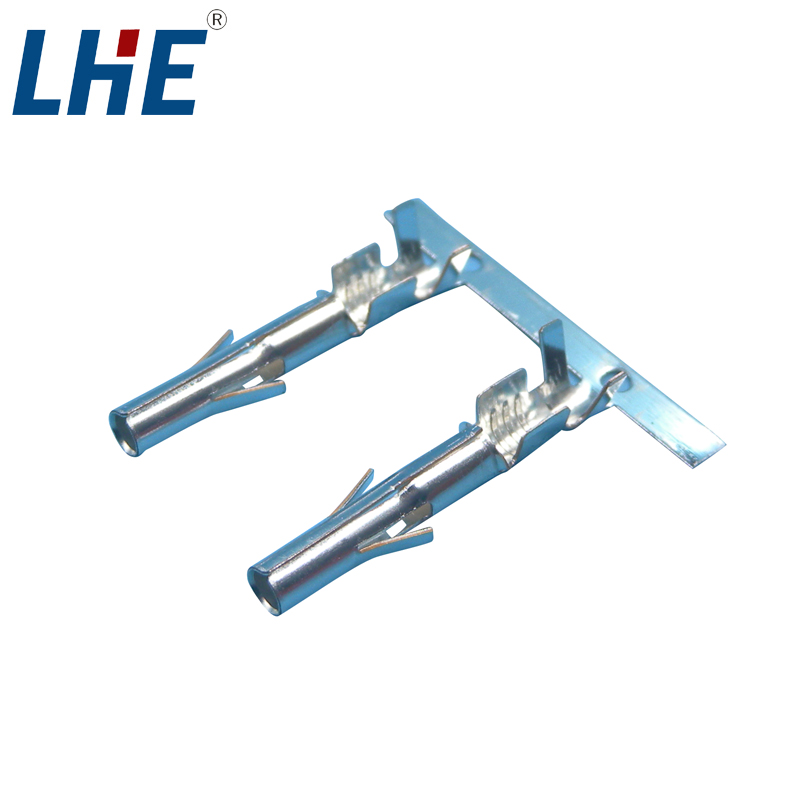

6.35mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 20-14 AWG, Roll
C6351-TP
| Product category: C6351 SERIES | Picth: 6.35mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 20-14 | UL: E364711 |
| Keywords: cable terminal,wire electrical terminal,wire to wire terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 6.35 mm Connector System: Wire-to-Wire Product category: C6351-TP |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 20-14 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel |
