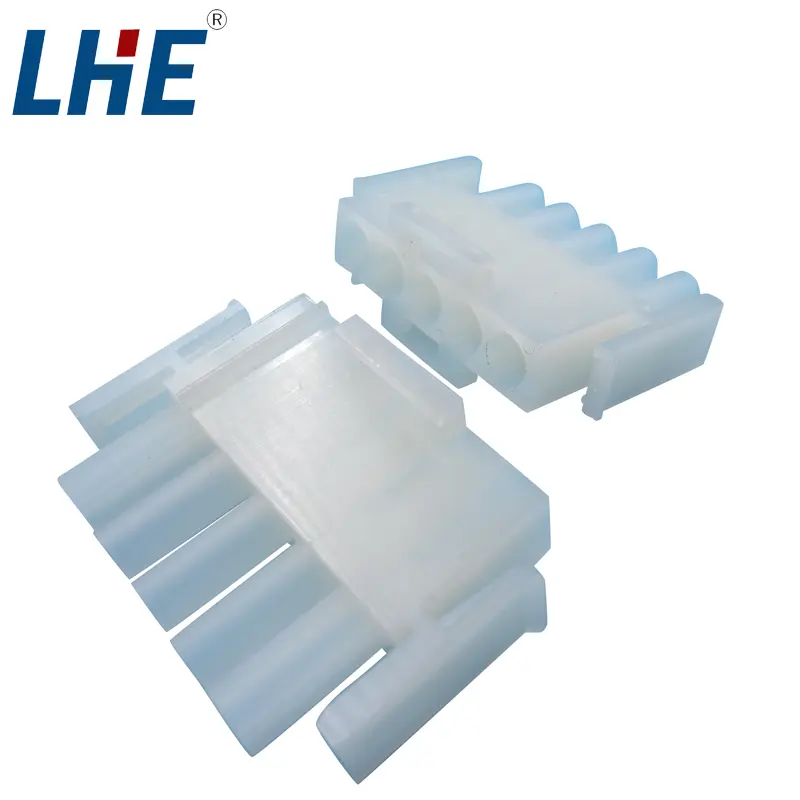

6.35mm Pitch, Housing, Single Row, 5 Circuits, Nylon 66 UL94V-0, White, Bag
C6351-H05
| Product category: C6351 SERIES | Picth:6.35mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 20-14 | UL: E364711 |
| Keywords: 6.35mm connector,connector 5 pin,5 pin wiring connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 6.35 mm Connector System: Wire-to-Wire Product category: C6351-H05 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 5
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
