Types of common terminal

Wiring terminal has various types and modes, among them, common types of terminals are as follows.



1.The wiring terminal of plug and pull type



The product is connected by two parts. One part of the wire is pressed down and then inserted into the  other part, which is then welded to the PCB board. The mechanical principle of the bottom connection and the anti-vibration design ensure the long term airtight connection and the reliability of the finished product.

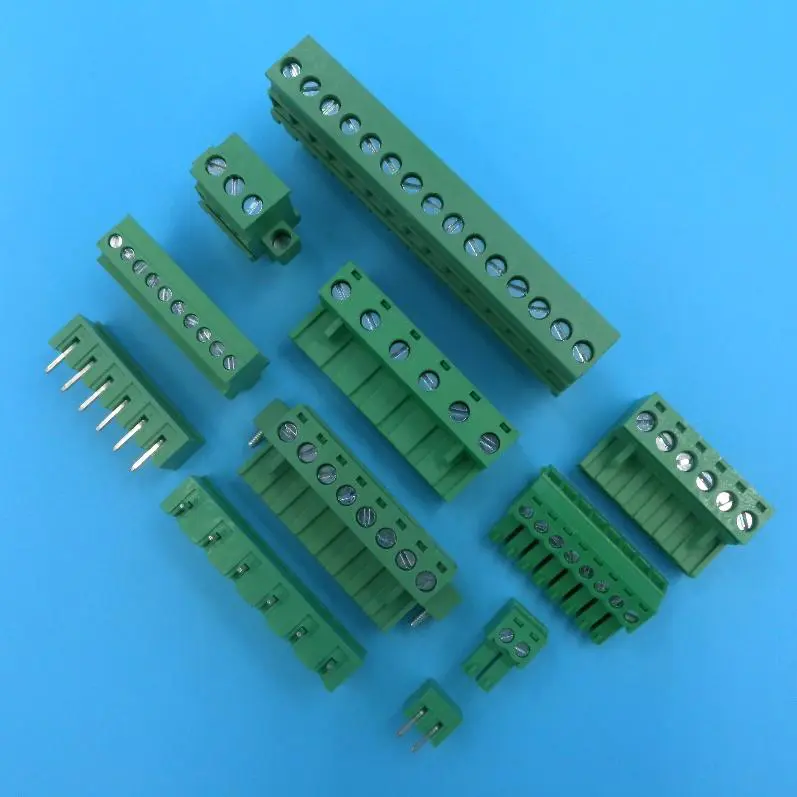

The wiring terminal of plug and pull type



2.The wiring terminal of fence type



The fence type terminal can realize safe, reliable and effective connection, especially in high current, high voltage is widely used.



The wiring terminal of fence type



3.The wiring terminal of spring type



The wiring terminal of spring means a new type of terminal, which using spring device, has been widely used in the world of electrical and electronic engineering industry, such as lighting, elevator control, instrumentation, power supply, chemistry and automotive power.



The wiring terminal of spring type



4.The wiring terminal of rail type



The wiring terminal of rail type adopts the design of pressing line and unique thread self-locking. It makes the wiring connection reliable and safe. The series of wiring terminal appearance is beautiful and generous, can be equipped with a variety of accessories, such as short circuit piece, identification bar, baffle, etc.



The wiring terminal of rail type



5.The wiring terminal of through-the-wall type



The wiring terminal of through-the-wall type uses screw connecting wire technology, the insulation material is PA66 (flame retardant grade: UL94,V-0), and the connector adopts superior highly conductive metal material.



The wiring terminal of through-the-wall type



Zhejiang Lianhe electronic Co.,Ltd. is a professional manufacturer of electronic connector, has more than 10 years experience of production technology and process. It has good quality product, complete production equipment. Need terminals and other connectors, welcome to contact us.
