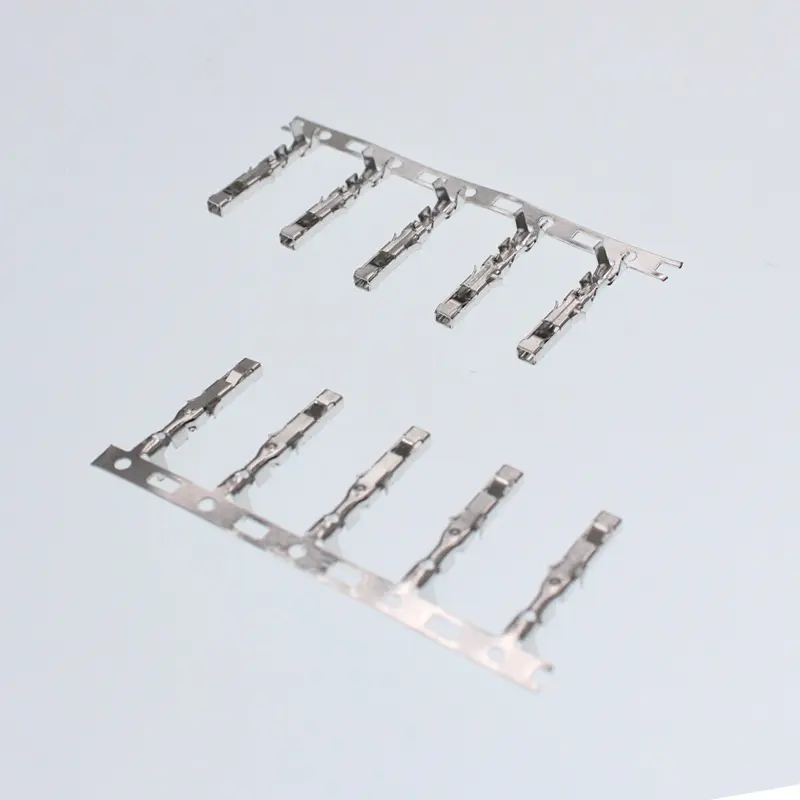

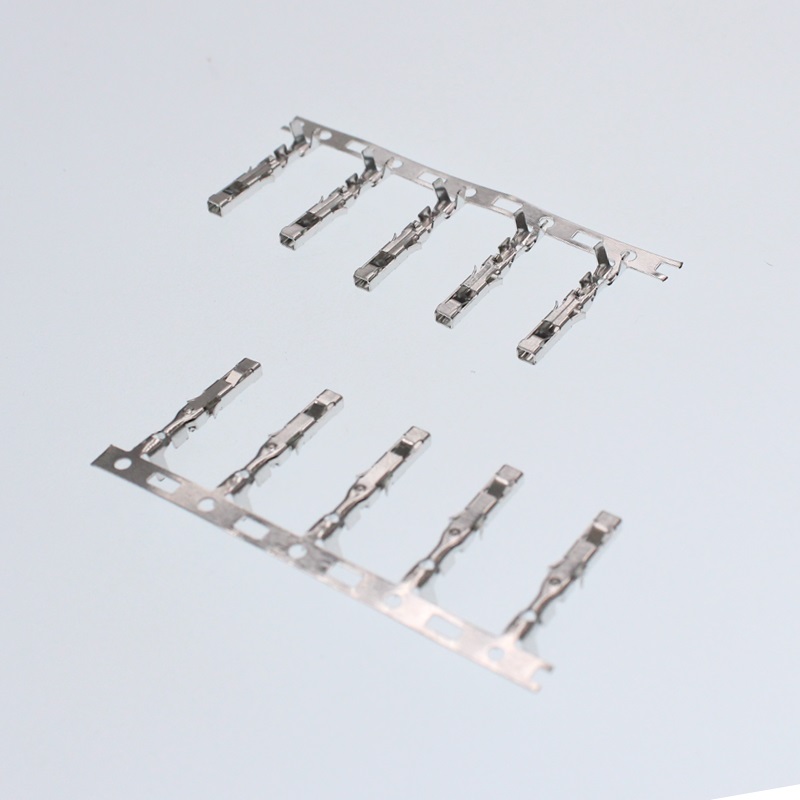

4.2mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 20-18 AWG, Roll
A4203-T32P
| Product category: A4203 SERIES | Picth: 4.2mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 8 | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 20-18 | UL: E364711 |
| Keywords: connectors terminals,housing terminal,male terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 4.2 mm Connector System: Wire-to-Board Product category: A4203-T32P |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 20-18 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 8 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel |
