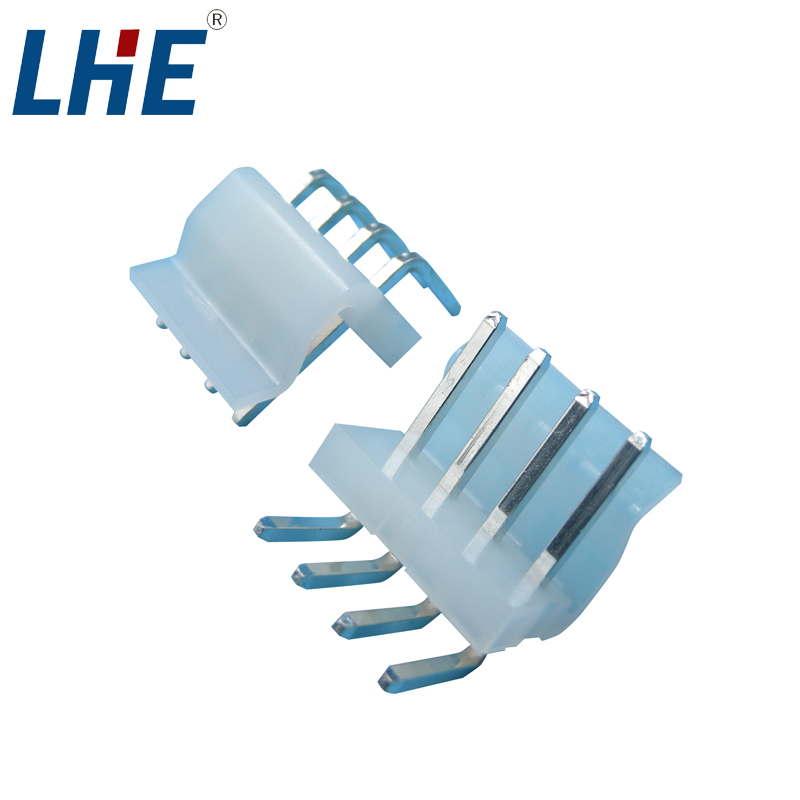

3.96mm Pitch, Right-Angle Header, Single Row, 4 Circuits, Nylon 66 UL94V-0, Brass Tin, White, Bag
A3961-WR04
| Product category: A3961 SERIES | Picth:3.96mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 7 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 24-18 | UL: E364711 |
| Keywords: 4 pin connector pcb,connector electrical 4 pin,connector pcb | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 3.96 mm Connector System: Wire-to-Board Product category: A3961-WR04 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 4
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 7 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
