1.25mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 30-26 AWG, Roll

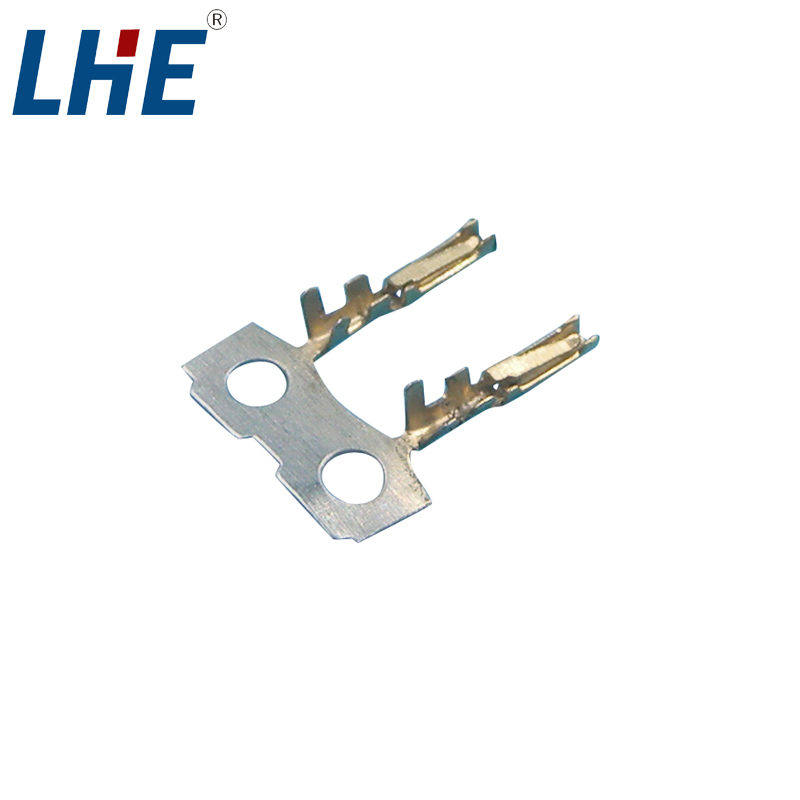

A1254-T
| Product category: A1254 SERIES | Picth: 1.25mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 1.0 | Voltage – Maximum(VAC/DC): 50 |
| Wire rang(AWG): 30-26 | UL: E364711 |
| Keywords: electronic wire terminal,smd terminal,wire to board terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 1.25 mm Connector System: Wire-to-Board Product category: A1254-T |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 30-26 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 50
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel |
