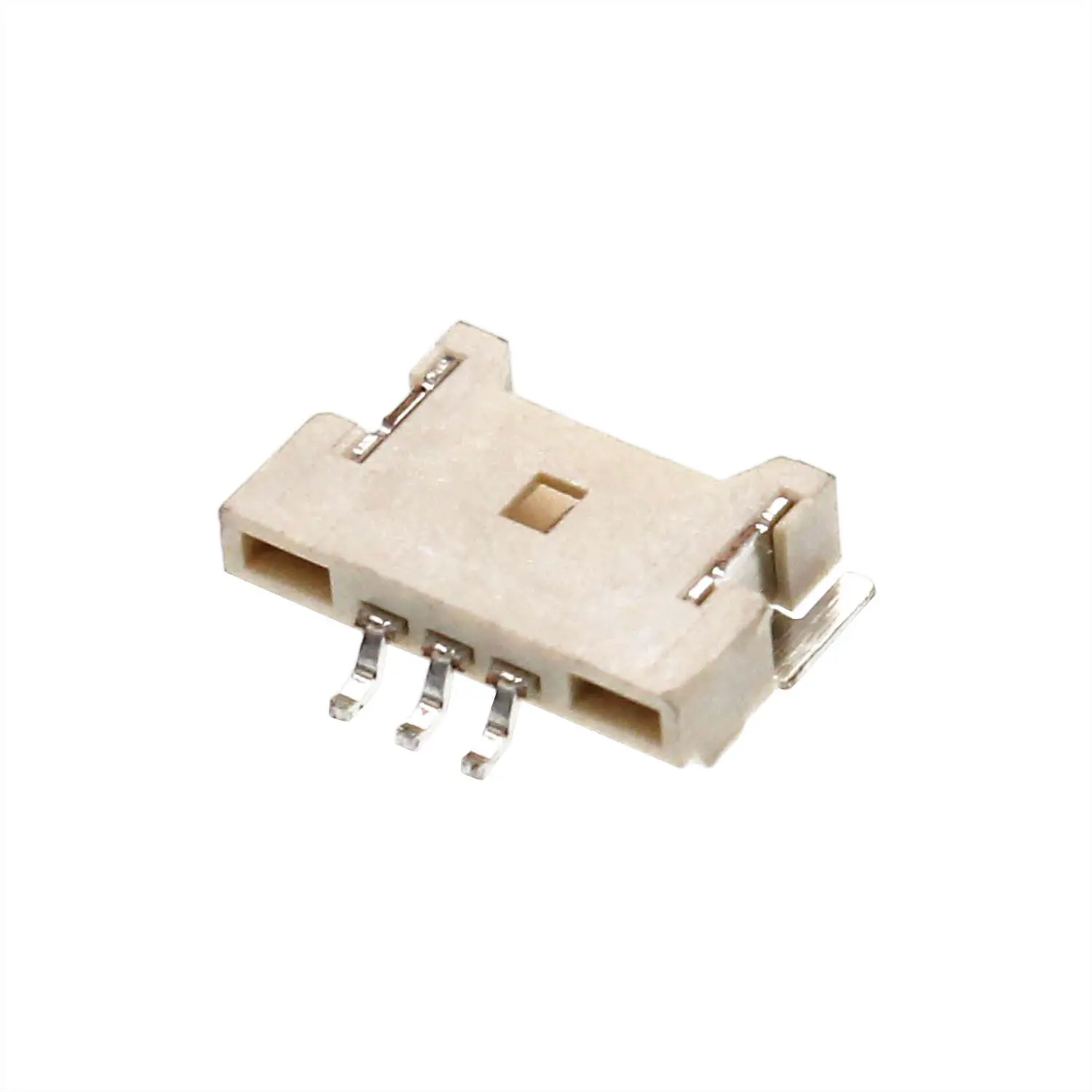

1.25mm Pitch, Vertical Header, Surface Mount, Single Row, 3 Circuits, LCP, Brass Tin, Beige, Cap Reel
A1254-SR03
| Product category: A1254 SERIES | Picth:1.25mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 1.0 | Voltage – Maximum(VAC/DC): 50 |
| Wire rang(AWG): 30-26 | UL: E364711 |
| Keywords:1.25mm wafer connector,cable pcb connector,smd board connector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 1.25 mm Connector System: Wire-to-Board Product category: A1254-SR03 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 3
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 50
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
