Product category: A4202 SERIES | Picth:4.2mm |
Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
Current(Max)(A): 9 | Voltage – Maximum(VAC/DC): 600 |
Wire rang(AWG): 22-16 | UL: E364711 |
Keywords: 2 pin auto connector,connector auto,car connector |
Product category: A4202 SERIES | Picth:4.2mm |
Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
Current(Max)(A): 9 | Voltage – Maximum(VAC/DC): 600 |
Wire rang(AWG): 22-16 | UL: E364711 |
Keywords: 2 pin auto connector,connector auto,car connector |

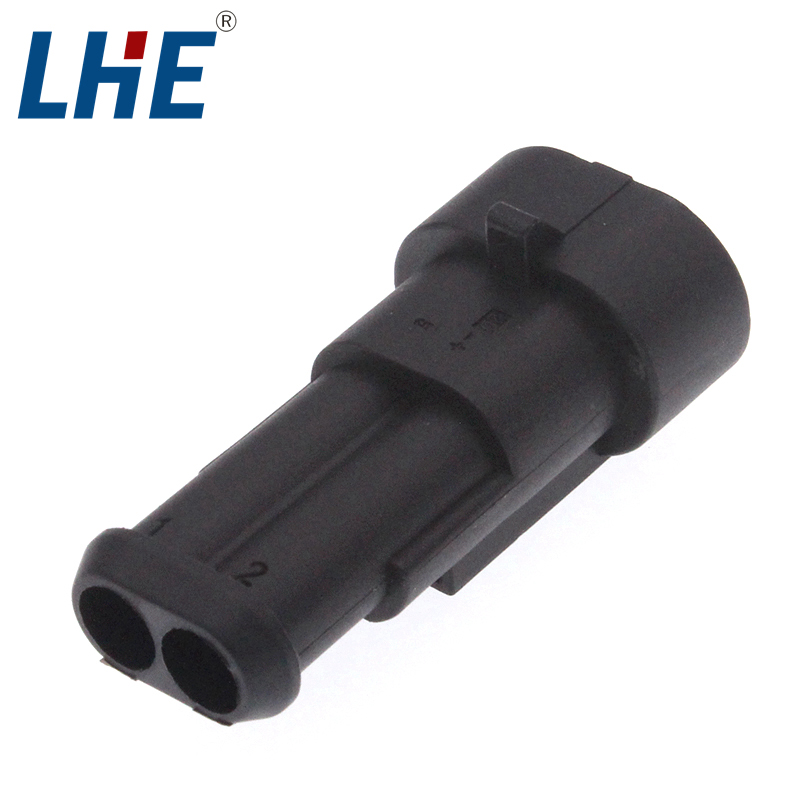

Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 2.8 mm Connector System: Wire-to-Wire Product category: C6004-H02 |
Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: Black |
Configuration Features | Number of Positions: 2
Number of Rows: 1 |
Electrical Characteristics | Voltage – Maximum(VAC/DC): 24
Current – Maximum per Contact(Max)(A): 14 |
Usage Conditions | Operating Temperature Range: -30~100 °C |
Industry Standards | UL: E364711 |
Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 200 |
