Product category: C6003&C6004 SERIES Picth:2.8mm
Temperature: -30℃~100℃ Material: Nylon 66, Brass Tin
Current(Max)(A): 14 Voltage – Maximum(VAC/DC): 24
Wire rang(mm²): 0.35 to 1.5 UL: E364711
Keywords: 2 pin waterproof connector,waterproof connector,auto connector
Product Type Features Connector Product Type: Housing

Centerline (Pitch): 2.8 mm

Connector System: Wire-to-Wire

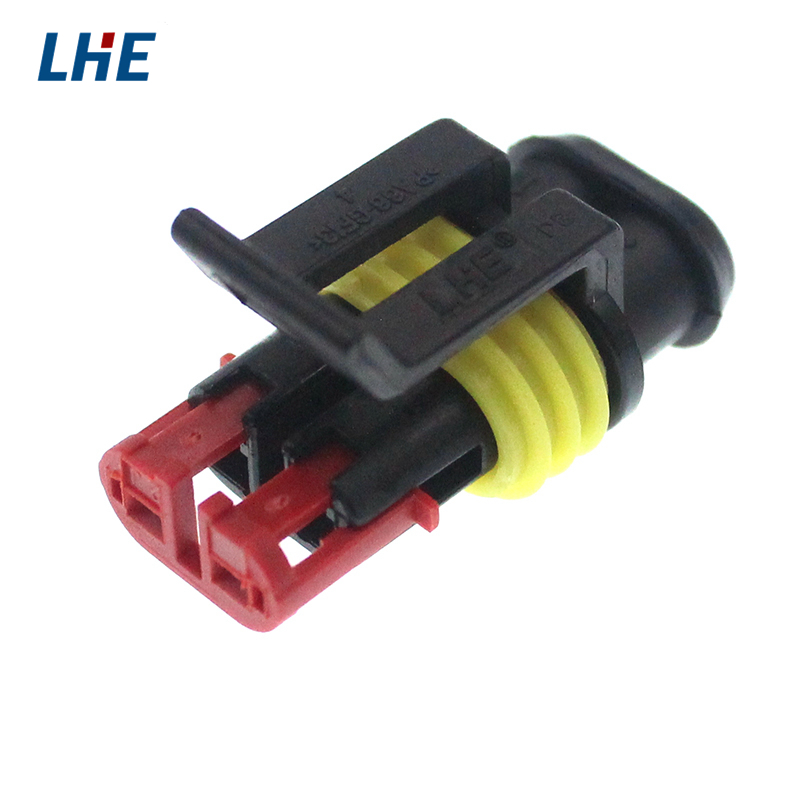

Product category: C6003-H02

Specifications And Characteristics Material – Resin and Flammability: Nylon 66 UL94V-0

Color: Black

Configuration Features Number of Positions: 2

Number of Rows: 1

Electrical Characteristics Voltage – Maximum(VAC/DC): 24

Current – Maximum per Contact(Max)(A): 14

Usage Conditions Operating Temperature Range: -30~100 °C
Industry Standards UL: E364711
Packaging Features Packaging Method: Bag/Carton

Packaging Quantity: 200
