| Product category: A2501 SERIES | Picth:2.5mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 30-22 | UL: E364711 |
| Keywords:male connector,pa66 gf30 connector,7 pin connector | |

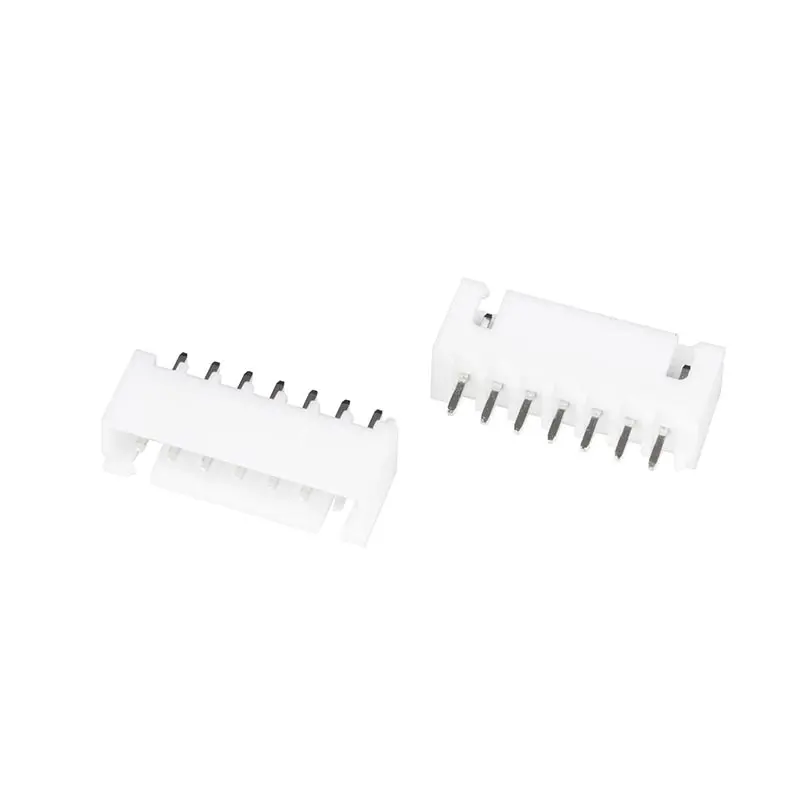

| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 2.5 mm Connector System: Wire-to-Board Product category: A2501-DWV07-K |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
| Configuration Features | Number of Positions: 7
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 2000 |
