Product category: A2501 SERIES | Picth: 2.5mm |
Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
Wire rang(AWG): 30-22 | UL: E364711 |
Keywords: 4 Pin Smd Plastic Pressure Wire Connectors |
Product category: A2501 SERIES | Picth: 2.5mm |
Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
Wire rang(AWG): 30-22 | UL: E364711 |
Keywords: 4 Pin Smd Plastic Pressure Wire Connectors |

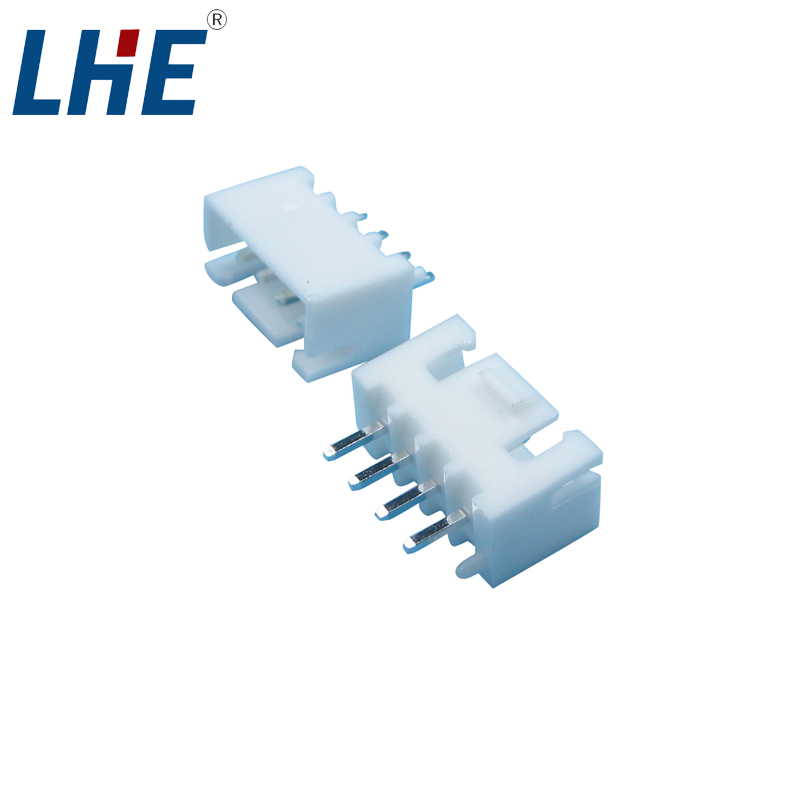

Product Type Features | Product Name: B4B-XH-AM 4 Pin Smd Plastic Pressure Wire Connectors
Connector Product Type: Wafer/Header Centerline (Pitch): 2.5 mm Connector System: Wire-to-Board Product category: A2501-DWV04-K |
Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Material-Metal: Brass Plating: Tin Plating Color: Natural/Beige |
Configuration Features | Number of Positions: 4
Number of Rows: 1 |
Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
Usage Conditions | Operating Temperature Range: -25~105 °C |
Industry Standards | UL: E364711 |
Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 2000 |
