| Product category: A5081 SERIES | Picth:5.08mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 5 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 24-18 | UL: E364711 |
| Keywords: 2 pin electrical plug,connector,2 pin connector | |

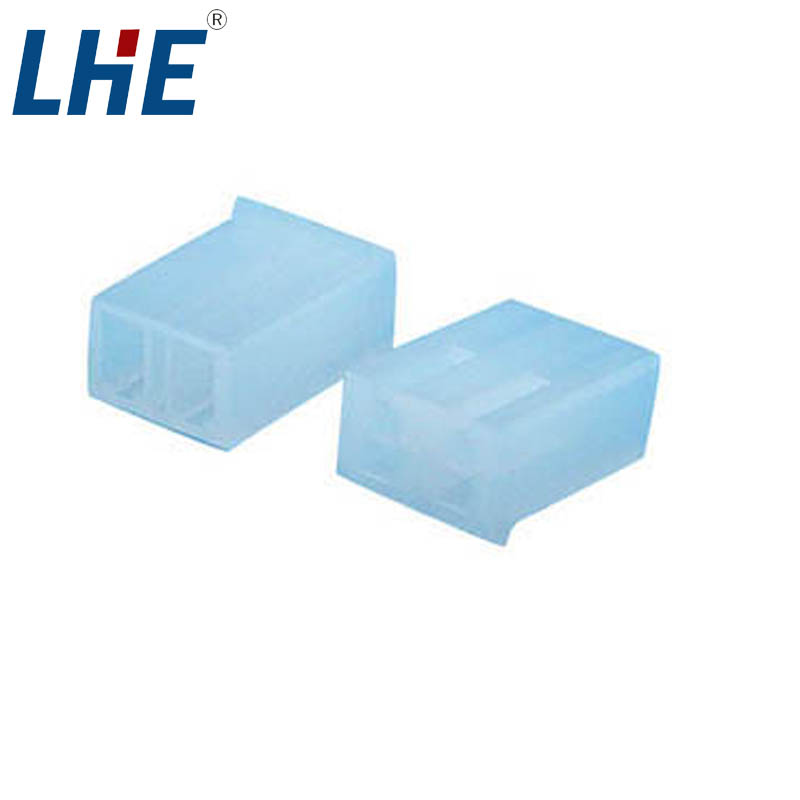

5.08mm Pitch, Housing, Single Row, 2 Circuits, Nylon 66 UL94V-0, White, Bag
A5081-H02
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 5.08 mm Connector System: Wire-to-Board Product category: A5081-H02 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 2
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 5 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 2000 |
