| Product category: A2002 SERIES | Picth:2.0mm |
| Temperature: -25℃~105℃ | Material: Nylon 66, Brass Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 28-22 | UL: E364711 |
| Keywords: wire connector,small electrical connectors,connector | |

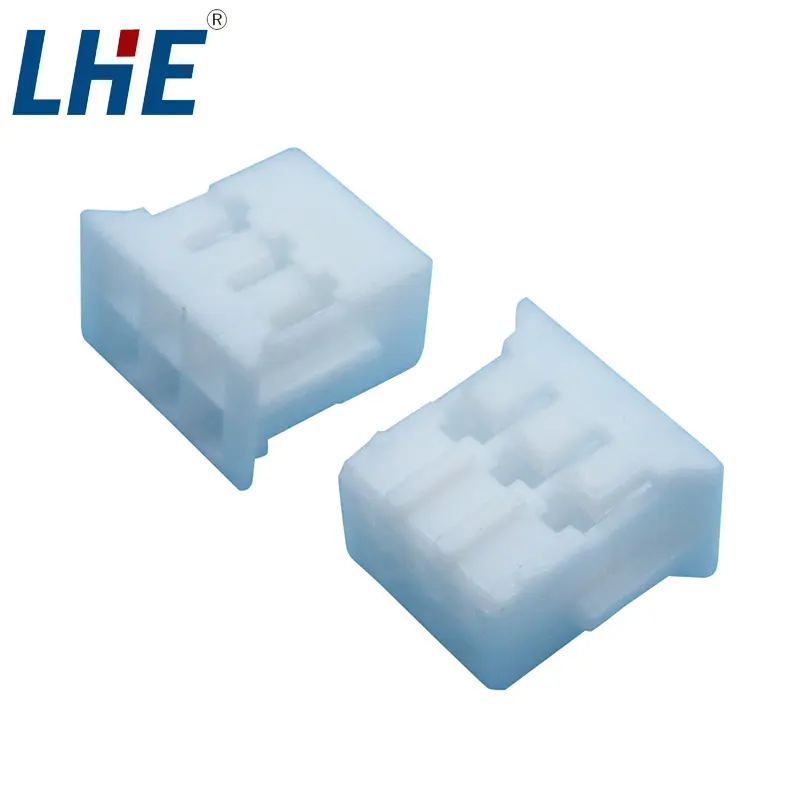

2.00mm Pitch, Housing, Double Row, 6 Circuits, Nylon 66 UL94V-0, Natural, Bag
A2002-H03X2
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 2 mm Connector System: Wire-to-Board Product category: A2002-H03X2 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: Natural |
| Configuration Features | Number of Positions: 6
Number of Rows: 2 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25~105 °C |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton
Packaging Quantity: 2000 |
