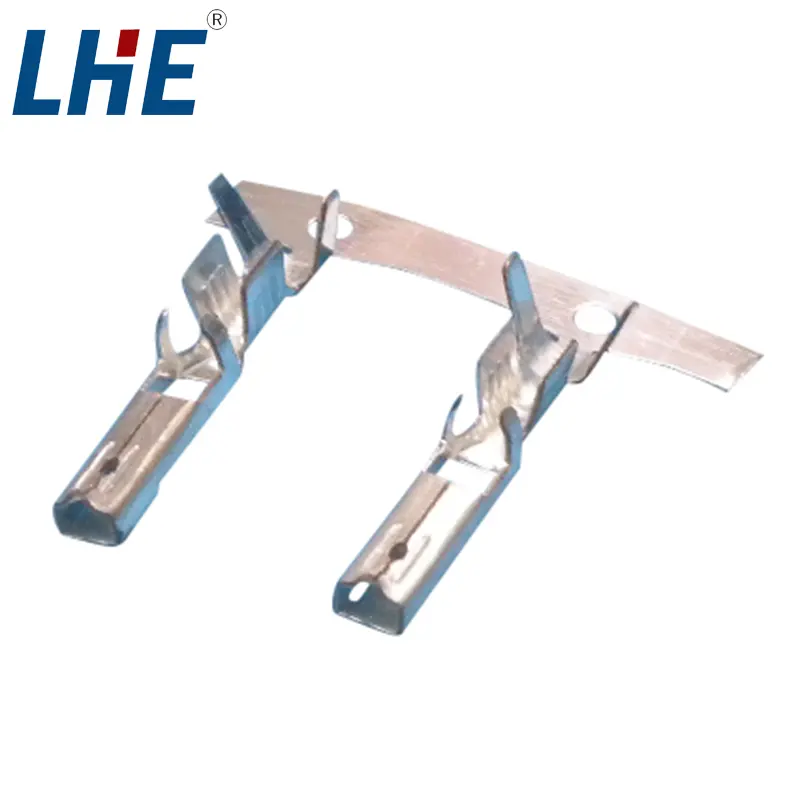

6.2mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 18-14 AWG, Roll
C6203-T21
| Product category: C6203 SERIES | Picth: 6.2mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 5 | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 18-14 | UL: E364711 |
| Keywords: wire crimp terminal,pin terminal,wire connector terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 6.2 mm Connector System: Wire-to-Wire Product category: C6203-T21 |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 18-14 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 5 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel |
