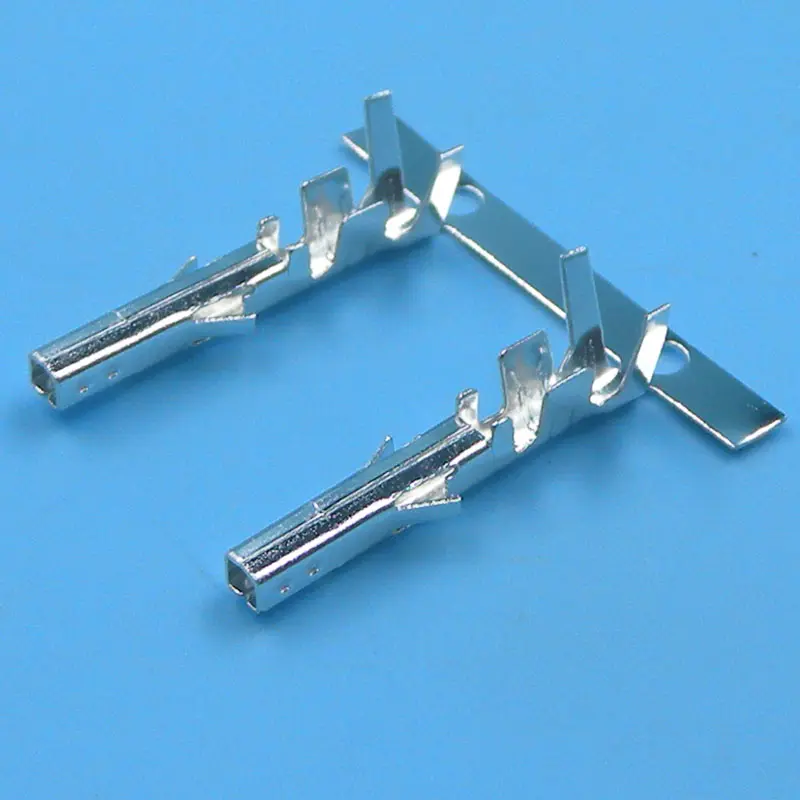

4.2mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 28-16 AWG, Roll
C4201-TP
| Product category: C4201 SERIES | Picth:4.2mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 9 | Voltage – Maximum(VAC/DC): 600 |
| Wire rang(AWG): 28-16 | UL: E364711 |
| Keywords:battery terminal,housing terminal,male terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 4.2 mm Connector System: Wire-to-Wire Product category: C4201-TP |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 28-16 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 600
Current – Maximum per Contact(Max)(A): 9 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Roll |
