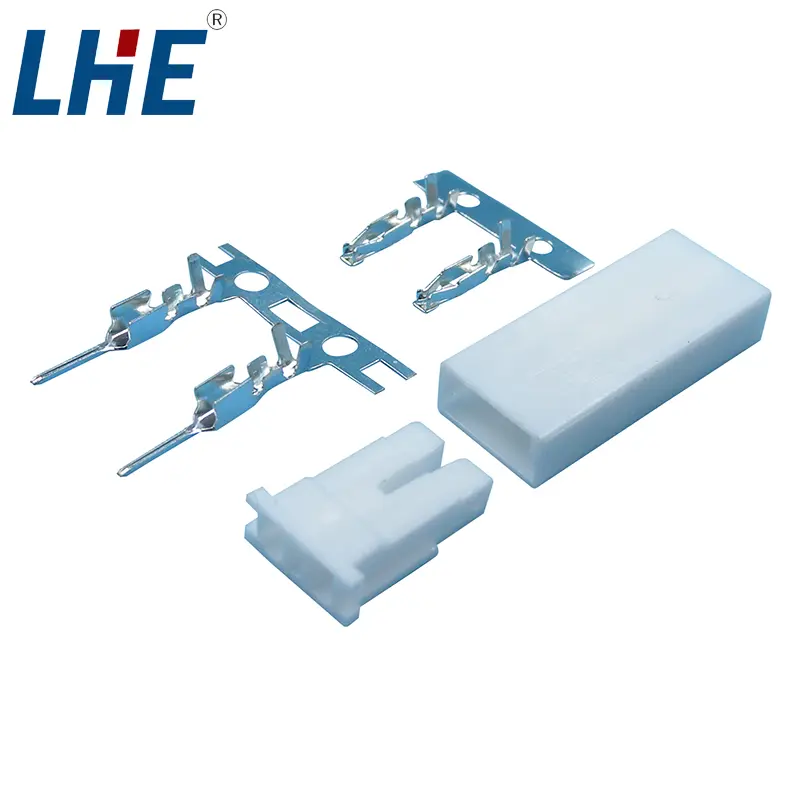

3.5mm Pitch, Housing, Single Row, 2 Circuits, Nylon 66 UL94V-0, White, Bag
C3501-HB02
| Product category: C3501 SERIES | Picth:3.5mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 1 | Voltage – Maximum(VAC/DC): 1400 |
| Wire rang(AWG): 28-24 | UL: E364711 |
| Keywords: 2 pin cable plug,pa66 wire connector,pa66 cable connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 3.5 mm Connector System: Wire-to-Wire Product category: C3501-HB02 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 2
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 1400
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
