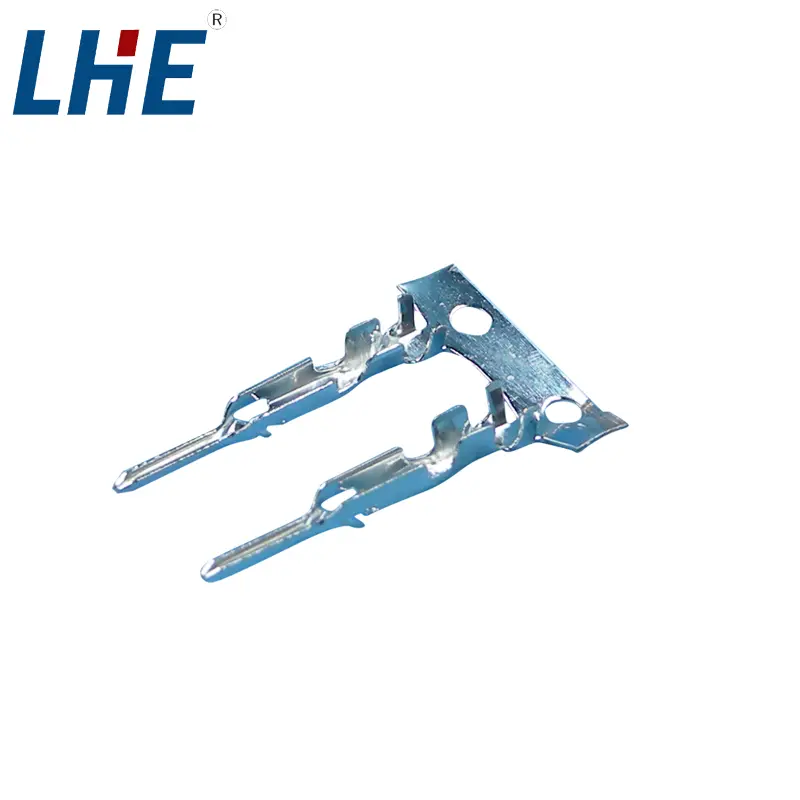

2.5mm Pitch, Terminal, Phosphor Bronze, Tin(Sn) Plating, 28-22 AWG, Roll
C2505-TP
| Product category: C2505 SERIES | Picth: 2.5mm |
| Temperature: -25℃~105℃ | Material: Phos Bronze Tin |
| Current(Max)(A): 3 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 28-22 | UL: E364711 |
| Keywords: electrical terminal,wire to wire terminal,wire crimp terminal | |
| Product Type Features | Connector Product Type: Terminal
Centerline (Pitch): 2.5 mm Connector System: Wire-to-Wire Product category: C2505-TP |
| Specifications And Characteristics | Material-Metal: Phosphor Bronze
Plating: Tin Plating |
| Suitable Wire Type | Suitable Wire Type(AWG): 28-22 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 3 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Reel |
