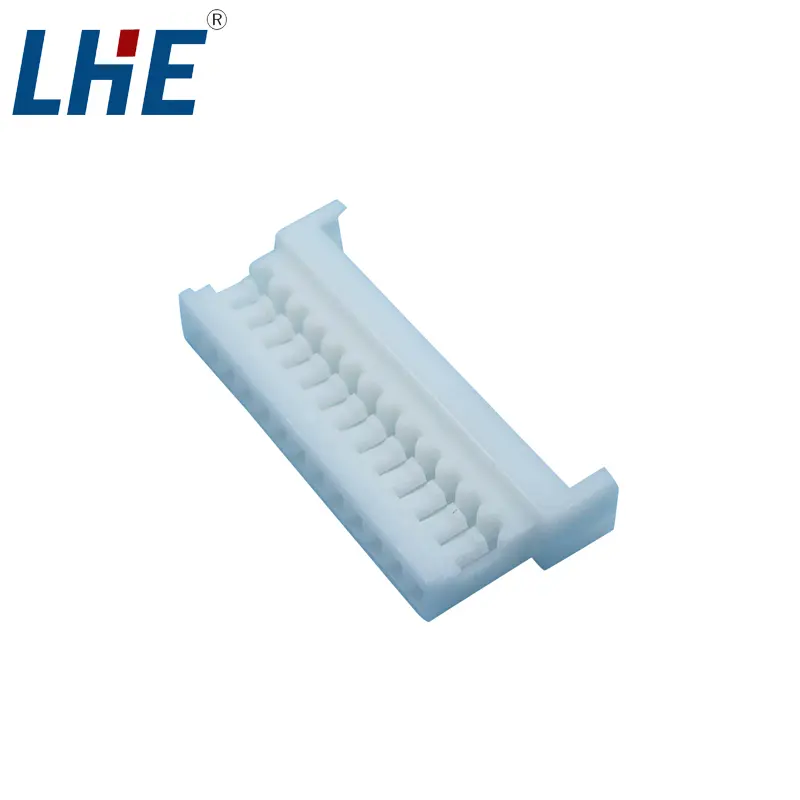

1.25mm Pitch, Housing, Single Row, 13 Circuits, Nylon 66 UL94V-0, White, Bag
C1251-H13
| Product category: C1251 SERIES | Picth:1.25mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 1 | Voltage – Maximum(VAC/DC): 125 |
| Wire rang(AWG): 32-28 | UL: E364711 |
| Keywords: wire to wire connectors,cable conector,1.25mm pitch connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 1.25 mm Connector System: Wire-to-Wire Product category: C1251-H13 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 13
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 125
Current – Maximum per Contact(Max)(A): 1 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
