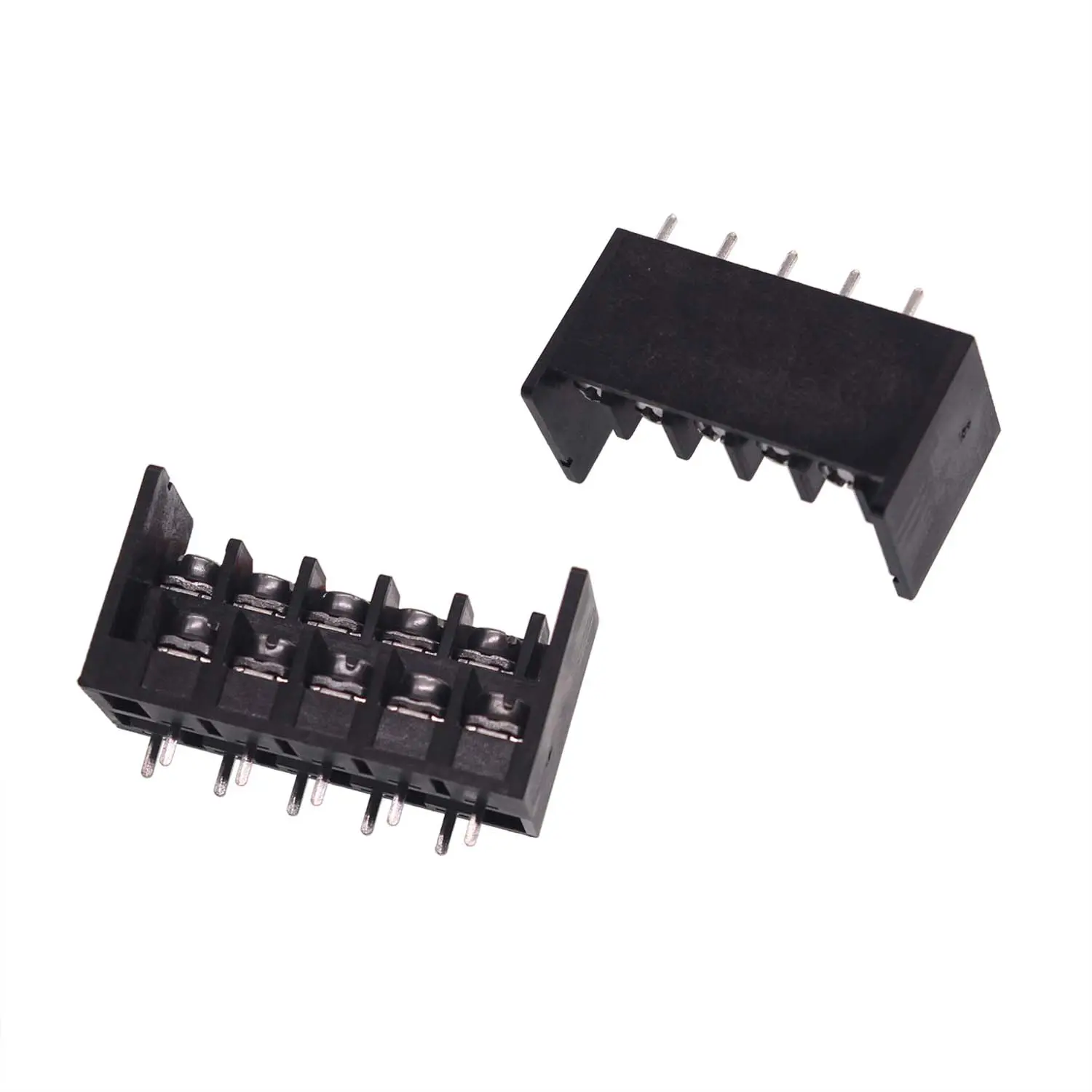

7.62mm Pitch, Vertical Header, Double Row, 24 Circuits, PBT UL94V-0, Brass Tin, Black, Bag
B76202-WV12X2
| Product category: B76202 SERIES | Picth:7.62mm |
| Temperature: -25℃~105℃ | Material: PBT, Brass Tin |
| Current(Max)(A): 10/td> | Voltage – Maximum(VAC/DC): 300 |
| Wire rang(AWG): 22-14 | UL: E364711 |
| Keywords: connector 24 pin,male connector electrical,battery connector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 7.62 mm Connector System: Board-to-Board Product category: B76202-WV12X2 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT
Material-Metal: Brass Plating: Tin Plating Color: Black |
| Configuration Features | Number of Positions: 24
Number of Rows: 2 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 300
Current – Maximum per Contact(Max)(A): 10 |
| Usage Conditions | Operating Temperature Range: -25℃~125℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
