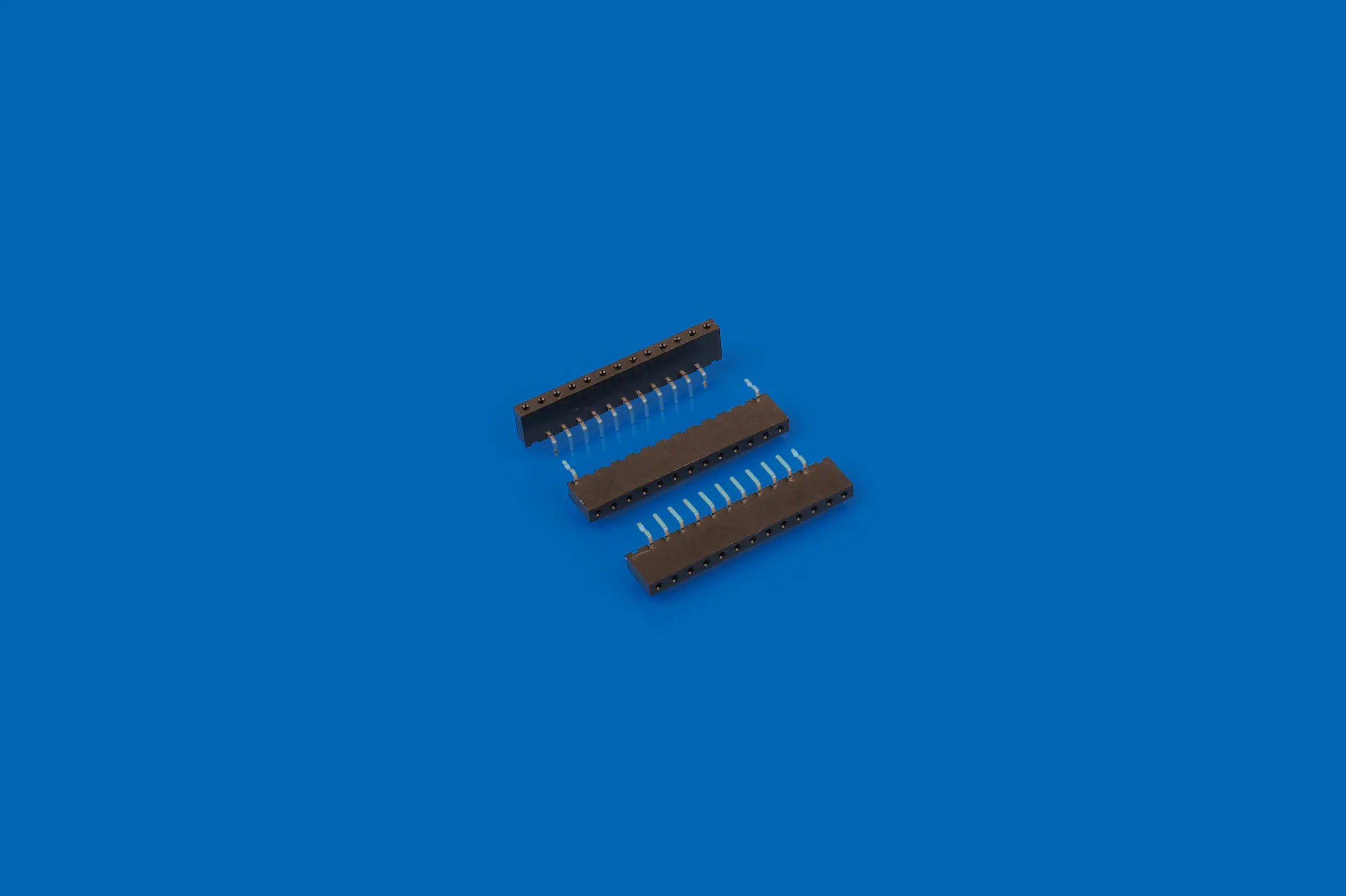

2.54mm Pitch, Vertical Header, Single Row, 15 Circuits, PBT UL94V-0, Brass Tin, Black, Bag
B2541-WV15
| Product category: B2541 SERIES | Picth:2.54mm |
| Temperature: -40℃~105℃ | Material: PBT, Brass Tin |
| Current(Max)(A): 2 | Voltage – Maximum(VAC/DC): 250 |
| Applicable PC board thickness: 1.2-1.6mm | UL: E364711 |
| Keywords: header pin,15 pin pc board connector,battery connector pcb | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 2.54 mm Connector System: Board-to-Board Product category: B2541-WV15 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT
Material-Metal: Brass Plating: Tin Plating Color: Black |
| Configuration Features | Number of Positions: 15
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 2 |
| Usage Conditions | Operating Temperature Range: -40℃~125℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
