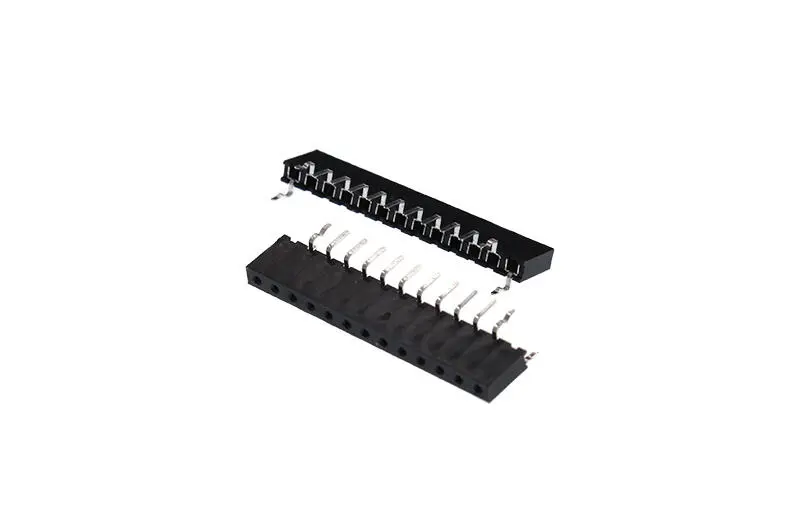

2.54mm Pitch, Vertical Header, Surface Mount, Single Row, 13 Circuits, PBT, Phosphor Bronze Tin, Black, Bag package
B2541 (FPC2.54)
| Product category: B2541 SERIES | Picth:2.54mm |
| Temperature: -40℃~125℃ | Material: PBT |
| Current(Max)(A): 2 | Voltage – Maximum(VAC/DC): 250 |
| Applicable PC board thickness:1.2~1.6mm | UL: E364711 |
| Keywords: electrical connector,13pin connector,connector 13 pin | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 2.54 mm Connector System: Board to Board Product category: B2541-WV13 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT UL94V-0
Material-Metal: Phosphor Bronze Plating: Tin Plating Color: Black |
| Configuration Features | Number of Positions: 13
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 2 |
| Usage Conditions | Operating Temperature Range: -40℃~125℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
