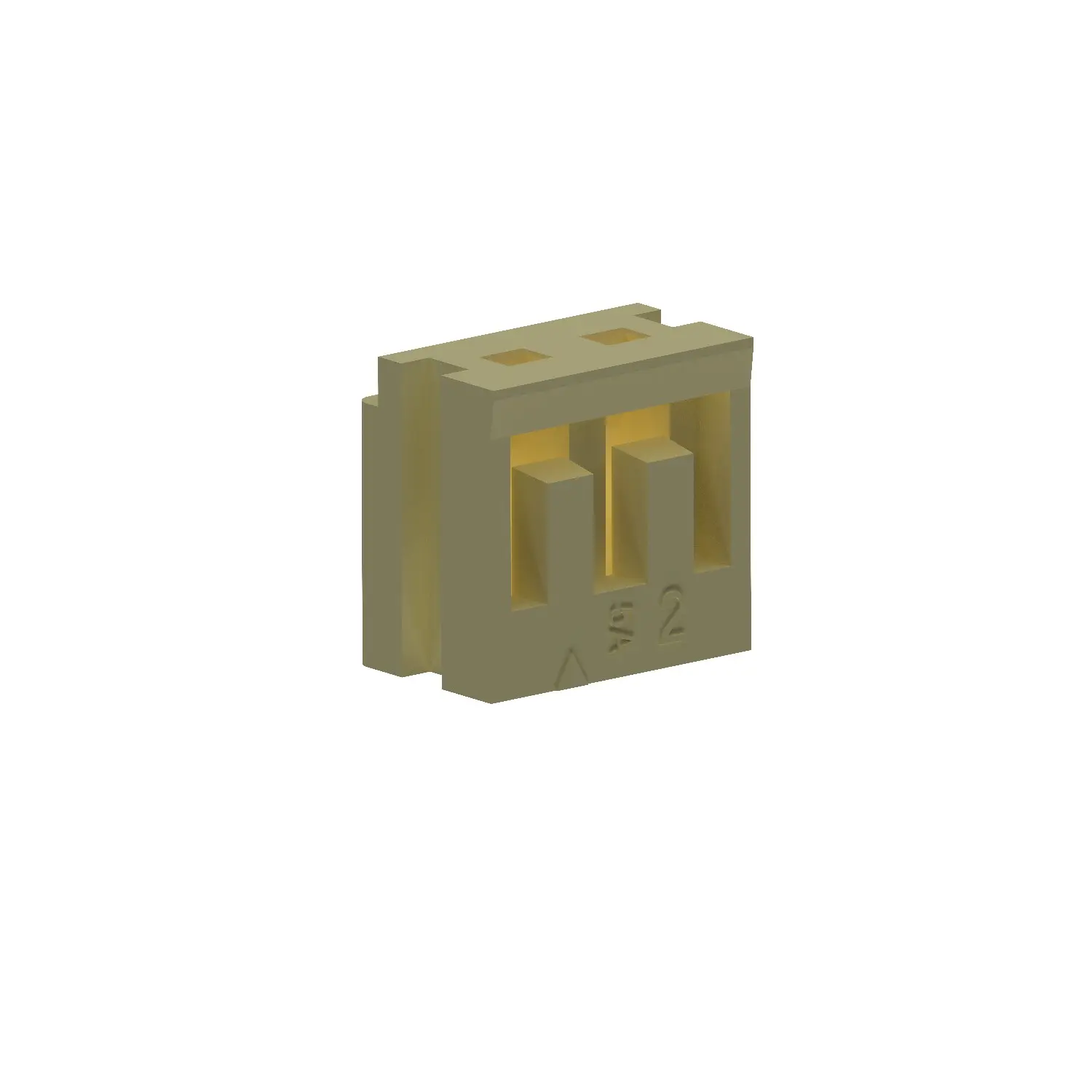

2.5mm Pitch, Housing, Single Row, 2 Circuits, Nylon 66 UL94V-0, White, Bag
B2503-H02
| Product category: B2503 SERIES | Picth:2.5mm |
| Temperature: -25℃~105℃ | Material: Nylon 66 |
| Current(Max)(A): 2 | Voltage – Maximum(VAC/DC): 250 |
| Wire rang(AWG): 30-24 | UL: E364711 |
| Keywords: plastic pole connector,2pin connector,electrical connector | |
| Product Type Features | Connector Product Type: Housing
Centerline (Pitch): 2.5 mm Connector System: Board-to-Board Product category: B2503-H02 |
| Specifications And Characteristics | Material – Resin and Flammability: Nylon 66 UL94V-0
Color: White |
| Configuration Features | Number of Positions: 2
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 250
Current – Maximum per Contact(Max)(A): 2 |
| Usage Conditions | Operating Temperature Range: -25℃~105℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
