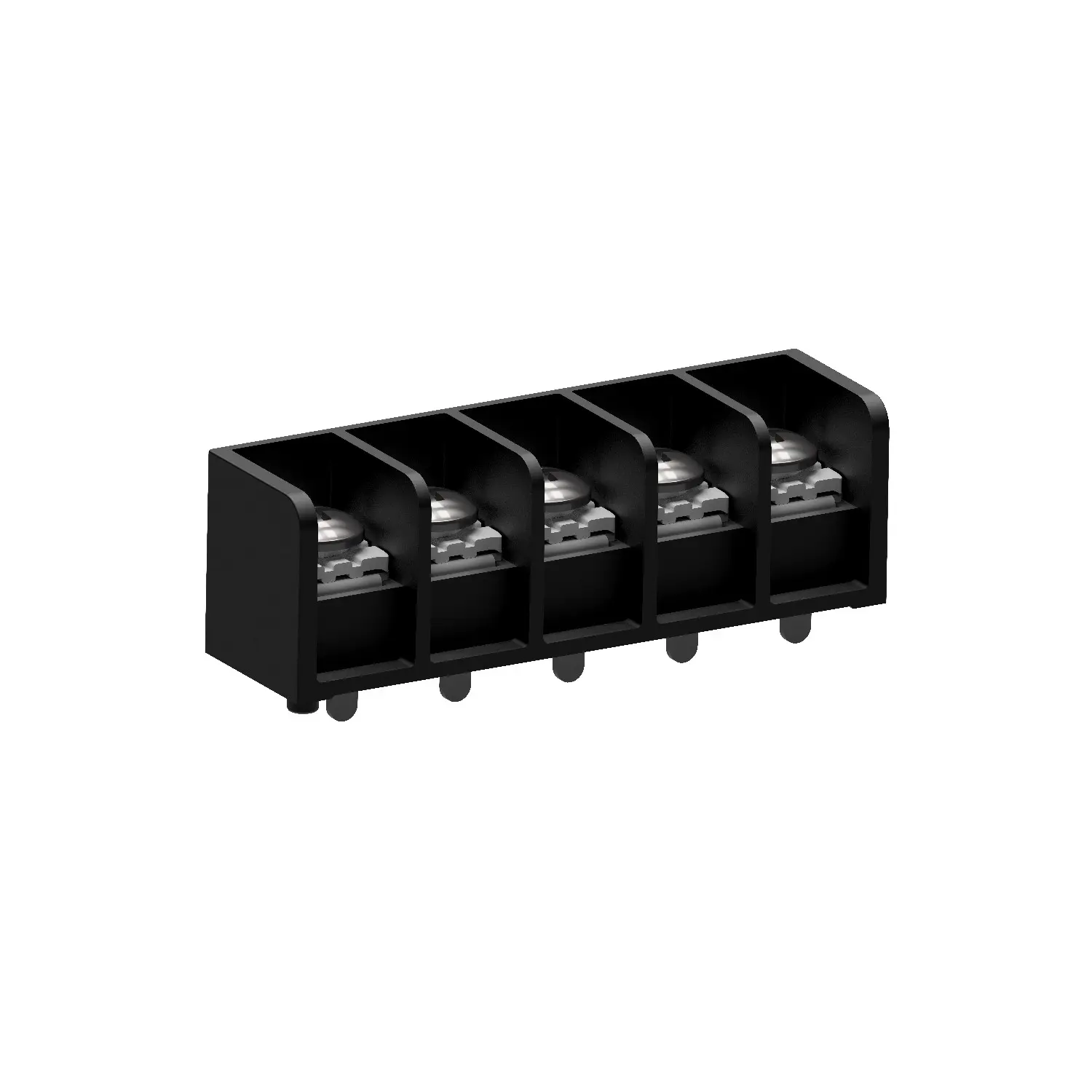

12.3mm Pitch, Vertical Header, Single Row, 5 Circuits, PBT UL94V-0, Brass Tin, Black, Bag
B12301-DWV05
| Product category: B12301SERIES | Picth:12.3mm |
| Temperature: -25℃~105℃ | Material: PBT, Brass Tin |
| Current(Max)(A): 40/td> | Voltage – Maximum(VAC/DC): 600 |
| Applicable wire:AWG#14 to #10, Screw torque: 1.2N.m | UL: E364711 |
| Keywords: wafer connector,electrical connectors types,header connector | |
| Product Type Features | Connector Product Type: Wafer/Header
Centerline (Pitch): 12.3mm Connector System: Board-to-Board Product category: B12301-DWV05 |
| Specifications And Characteristics | Material – Resin and Flammability: PBT
Material-Metal: Brass Plating: Tin Plating Color: Black |
| Configuration Features | Number of Positions: 5
Number of Rows: 1 |
| Electrical Characteristics | Voltage – Maximum(VAC/DC): 600
Current – Maximum per Contact(Max)(A): 40 |
| Usage Conditions | Operating Temperature Range: -25℃~125℃ |
| Industry Standards | UL: E364711 |
| Packaging Features | Packaging Method: Bag/Carton |
